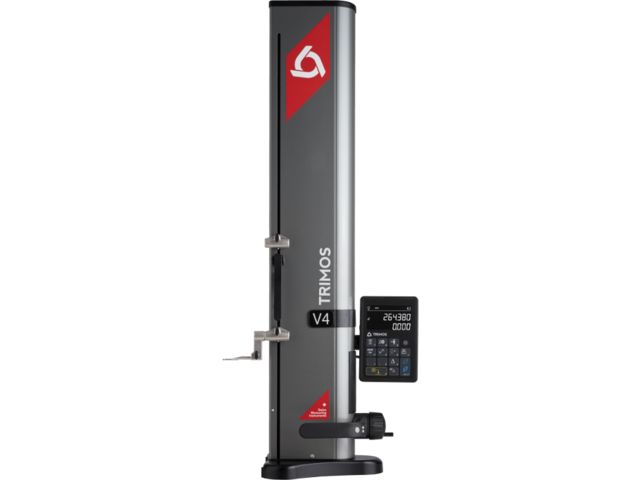

Height gauge V4

Metrology devices

Vote

Ask for a quote

Presentation

The height gauge V4 have been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product on the long run.

For more than 40 years Trimos philosophy has been to offer easy-to-use instruments that are very efficient in production environment.

The display unit provides functions that are directly accessible and depicted with symbols easy to understand.

This allows for easy and quick handling even by unqualified personnel. The large 2-line « Black Mask » display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market.

The V4 measuring column offers the same functions as the V3. In addition it is equipped with a second probe holder as well as with an air cushion for easy displacement on the measuring table. The programmable functions buttons of the handle allow a quick access to the functions most used.

• Measuring ranges 400 and 700 mm
• Extremely easy to use
• Electronically adjustable measuring force
• Autonomy: 20 h (lithium-ion batteries)

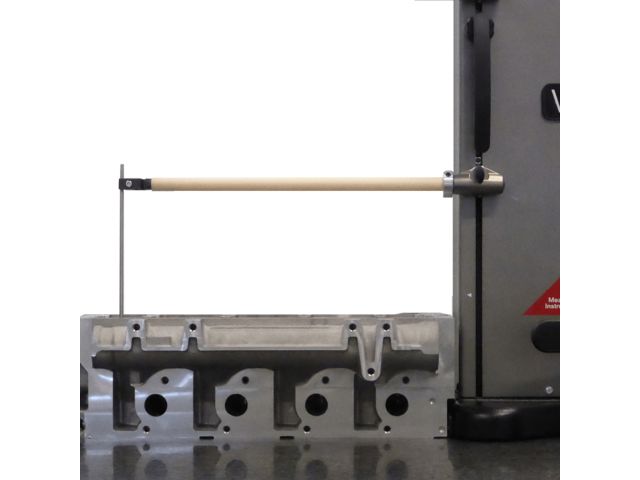

• Standard probes up to 400 mm
• Vast range of accessories
• All adjustments possible without tools
• RS232 et USB interfaces

Technical features

Measuring range mm(in) : 407 (16) , 711 (28) Measuring range with extension mm(in) : 719 (28) , 1023 (40) Max. permissible errors, BMPE µm : 5 , 7 Repeatability, RMPE (2s) µm : 2 (∅:4) Frontal squareness deviation, SMPE µm : 10 , 15 Maximal Resolution mm : 0.001 (0.00005) Weight kg : 21 , 24

Download the complete technical features
