TRIMOS SA

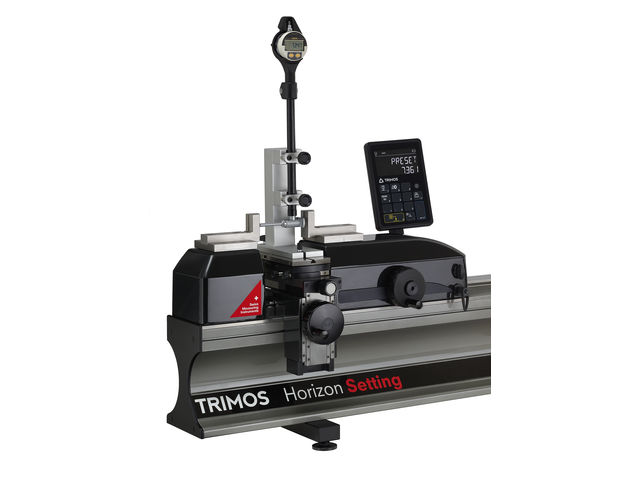

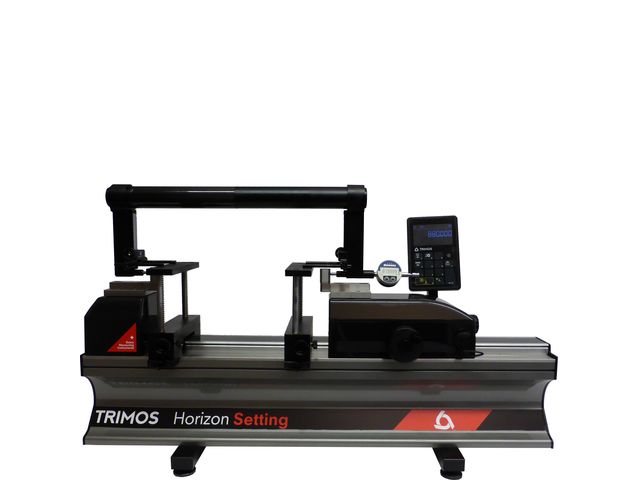

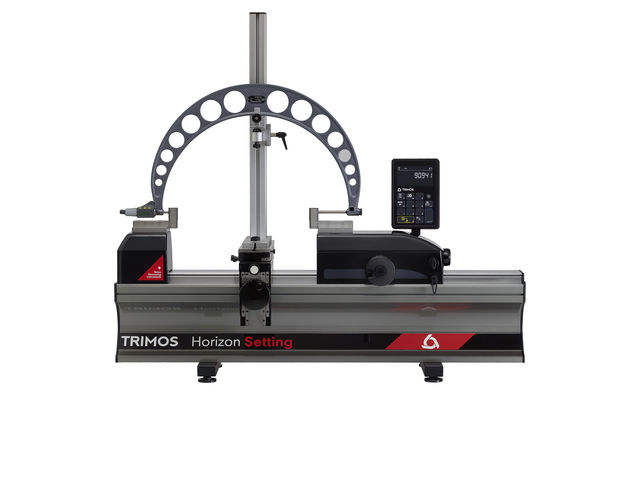

HORIZON SETTING - Setting of measuring equipment with variable dimensions TRIMOS SA

HORIZON SETTING - Setting of measuring equipment with variable dimensions

Metrology devices

Vote

Ask for a quote Receive Documentation Contact the supplier

When a large mechanical part is to be measured accurately, comparative measurements are made: A reference bench is used to set a comparative instrument which will then be used to measure the part.

The Horizon Setting is ideal as a reference bench for the setting of comparative instruments with fixed dimensions, but also with variable dimensions.



Its high precision and finishing level position it as a top of the range model for workshop or laboratory use. It is the perfect answer to current needs in the manufacturing field.


• Ideal for use in the workshop area
• Very simple manipulation
• Precise checking and setting made easy
• Autonomy 100 hours
• Wide selection of accessories

Measuring range: 550, 1050, 1550, 2050 and 3050 nn Max. permissible errors: 0.7 + L(mm)/1000 µm Repeatability (2s) 0.5 µm Max. resolution: 0.0001 mm Measuring force N : 15 Operational temperature °C : +10 ÷ +40 Interfaces: USB / RS232
Download the complete technical features

control and calibration of measuring means
