High flexible AS-INTERFACE cables for networking systems in the field
Communication at sensor/actuator level. Halogen free (PUR), UL-approval, oil resistant (TPE). Temperature range from -40°C bis +105°C (TPE)
-
"FD" = suitable for power chains
-
"LD” = Long Distance
Benefits
-
The new BUS ASI LD 2 x 2.5 (Long Distance) allows even modules located further away to be connected.
AS-I power supplies can be reduced. The BUS ASI LD is downwards-compatible with version 1.5.
-
For highly flexible applications (power chains, moving machine parts)
-
High oil-resistance
Application range
-
Communication at sensor/actuator level
-
Sensor-/actuator wiring
Product features
-
PUR versions are halogen-free according to IEC 60754-1
-
Flame-retardant according to IEC 60332-1-2, UL FT-2 flame test
-

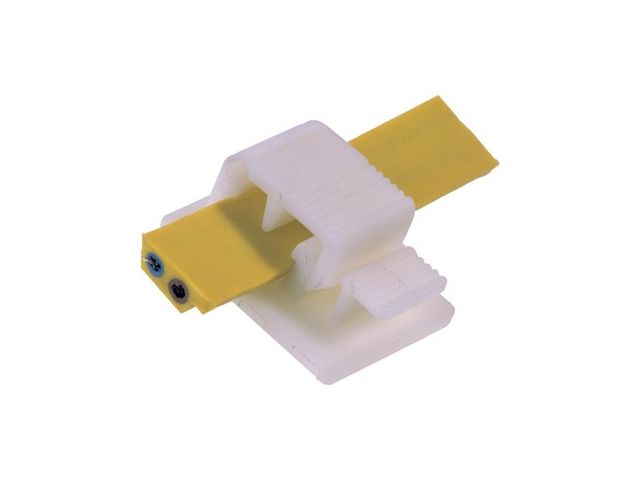

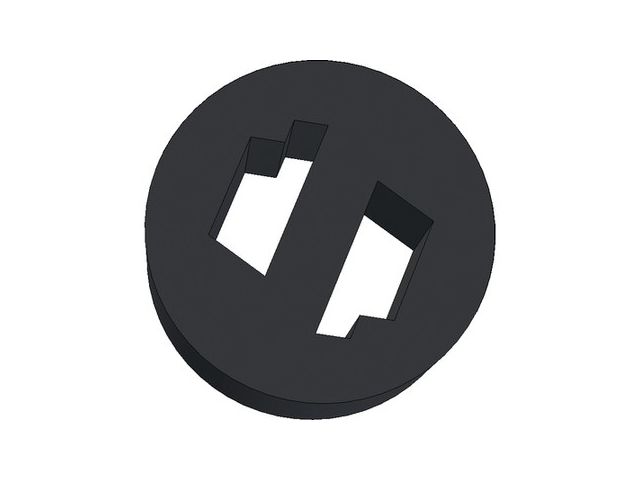

Data and power are transmitted via an unscreened, geometrically coded two-core flat cable (protection against polarity reversal).
-
The conductor is contacted by "piercing technology" within the ASI modules.
-
The sensors are connected to the ASI modules (coupling modules) using round cables (connection cables).
Norm references / Approvals
-
ASI is standardised Europe-wide in EN 50295 and internationally in IEC 62026-2.
-
TPE variant: UL AWM Style 2103
CSA AWM II A/B
Product Make-up
-
Extra-fine wire, tinned copper strands
-
core insulation: halogen-free compound
-
Outer sheath:
TPE
PUR
-
Outer sheath: yellow (RAL 1023), black (RAL 9005)
