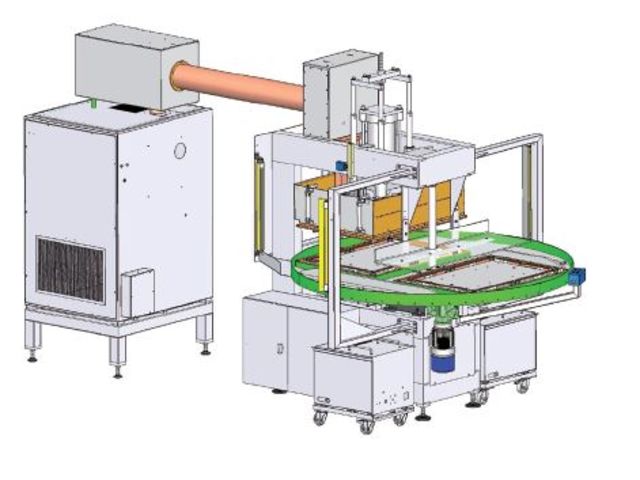

High-frequency sealing with rotating turntable Z83 BS

Manual bag sealing machines

Vote

Ask for a quote

Presentation

This high-frequency sealing press is perfect for sealing and cutting medical bags made from PVC or EVA films.

- Manual removal of the format on the counter tool / removal of tubes
- Press descends to seal round bags / sealing of tubes

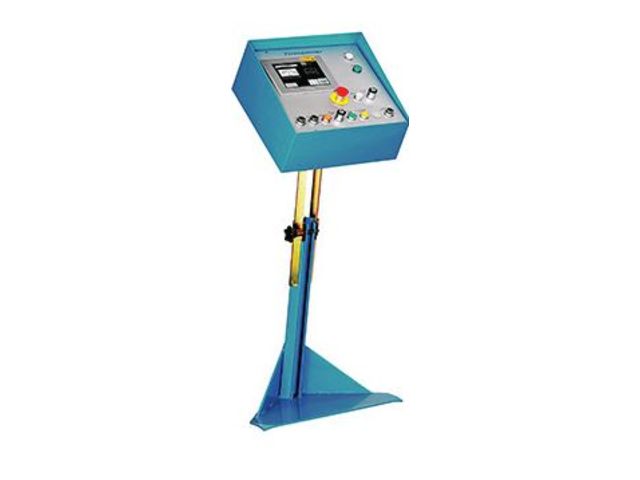

Its control centre comes equipped with a standard Proface touch
screen for intuitive handling and reading of production parameters.
The Z83 BS is equipped with backup safety systems:
- Turntable rotation initiated with double button push
and mechanical indexing.
- Standard «light curtain» type system.

Medical
Blood transfusion bags Bags for standard solutions (chloride, dextrose, glucose), Dialysis, drainage…

Medical devices
Knee brace, ankle brace, wrist protection, Back protection belt…

Industry
Blisters, leather goods (pvc kits, interfoils, Holsters, cards holders,…)

OPTIONS :

Z83 BS GANTRY PRESS - 3 COLUMNS
- Control by cylinder or motor: Hydraulic up to 4000 daN
- Traceability of sealing data

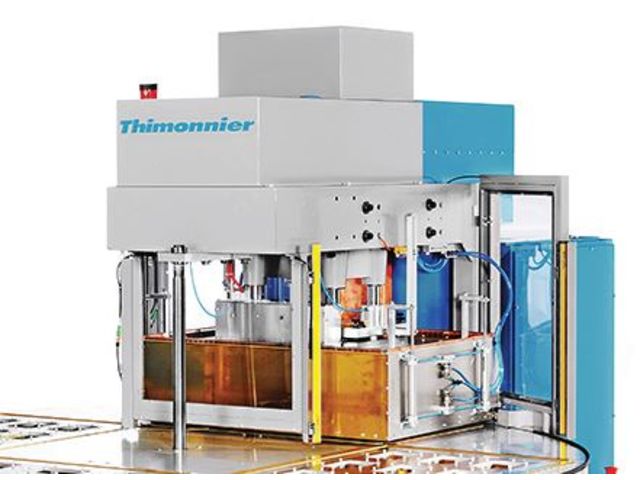

UPPER TABLE WITH HF SHIELDING
- Electrical heating or hydraulic climate control

Technical features

Power supply: 400 V Tri. + N - 50 Hz Compressed air supply: Input pressure = 7 - 9 bar Effective pressure = 6 bar - Output: Q = 15 to 25 Nm3/h Cooling water = 80 litres/h

Download the complete technical features
