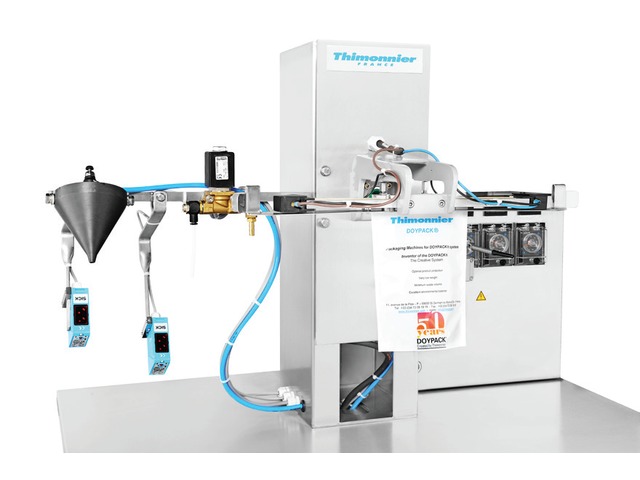

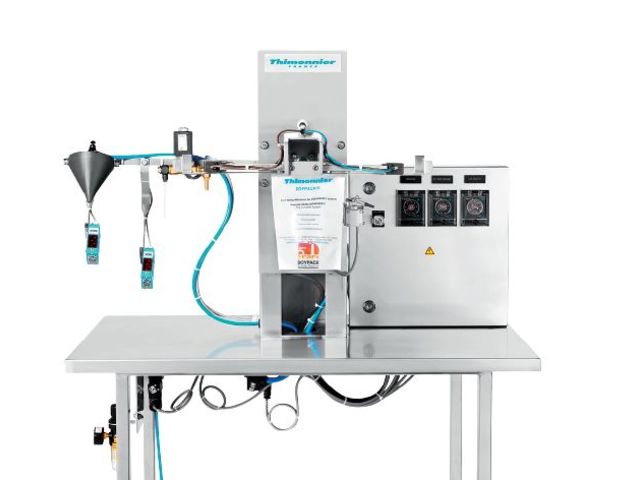

Bi-active heat-impulse system (two heating jaws), allows high quality sealing.
The jaws are activated by a pneumatic cylinder and are adjustable according to bags dimensions.
The sealing part is fitted on a stainless steel frame.
The control box is also built into stainless steel, and is completely waterproof (IP65).
Food industry
Milk and dairy products, fruit juices and nectars,
Soups and sauces, edible oils, legumes, rice dishes
Sterilisable, baby food, olives, pet food, coffee, tea,
Cheese, sugar, seafood, honey…
Chemicals and détergents
Concentrated powder or liquid détergents, coolants,
Distilled water, paint, motor oil, washer, wiper fluid…
Cosmetics and pharmaceuticals
Liquid soaps, creams, shampoo, sterile water, body oils…
OPTIONS :
INFLATING DEVICE FOR BAGS OPENING
Placed near the welding station
Very useful system to unfurl the bottom of DOYPACK® bags (e.g.)
INJECTION DEVICE FOR NEUTRAL GAS
Placed near the welding station
= Useful to increase the shelf life of some specific food
PRECUTTING DEVICE
Under the welding
Film thickness: up to 2 x 200 micronsWelding seam length: 320 mmWelding seam width: 3 mmColumn height: 65 cmTable height: 80 cmGlobal dimensions: l 100 x p 70 x h 140 cmPower supply: 230 V Mono - 50 / 60 Hz - P = 700 VA during sealingCompressed air supply: Network pressure = 7 to 9 barsMaximum pouch size: l 320 x h 400 mmRate of production: from 3 to 8 pouches/min
