High-performance eddy current measuring system for industrial series applications

“ Extremely high temperature application range of the controller up to 105 °C Best temperature compensation worldwide Configurable & easy to integrate ”

Ask for a quote

Presentation

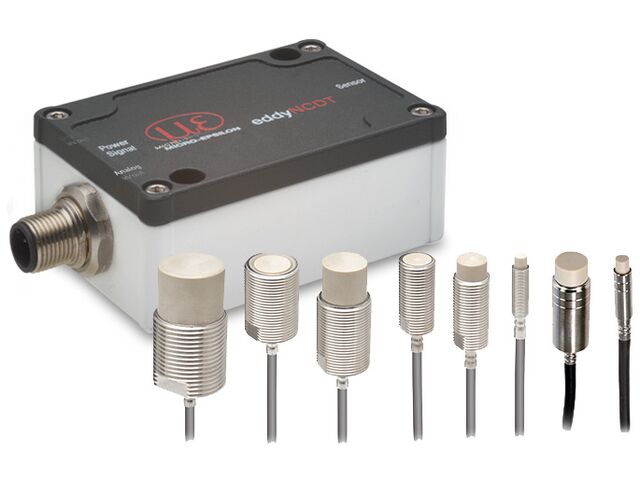

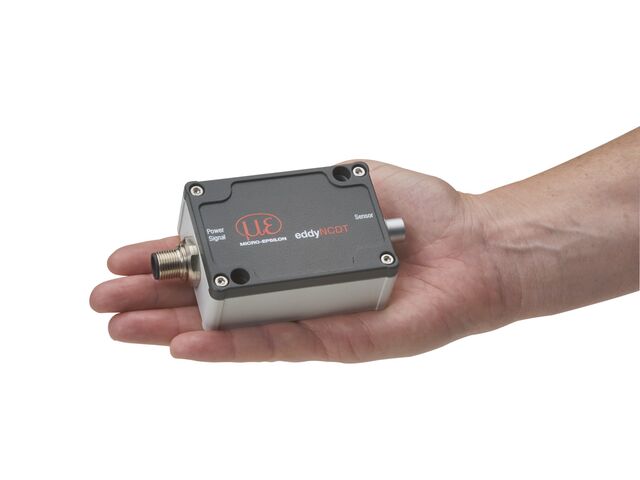

The eddyNCDT 3020 is a compact and powerful inductive measuring system (eddy current) for fast and precise displacement, distance and position measurements in industrial applications. Flexible in terms of connectivity and easy to configure, it can be used for numerous measurement tasks in industry and machine building.

The sensor system is designed for series and OEM applications and delivers precise and stable measurement results even under harsh conditions - up to max. 200 °C ambient temperature. The robust controller can be combined with a wide variety of sensors and is factory-adapted to ferromagnetic or non-ferromagnetic materials.

Robust and precise - for industrial series applications at high temperatures.

Technical features

Ideal for use at high temperatures: controller up to 105 °C / sensor up to 200 °C Precise distance measurements with high resolution up to 40 nm For fast measurements: Measuring rate 80 kSa/s up to a frequency response of 5 kHz For fast measurements: Measuring rate 80 kSa/s up to a frequency response of 5 kHz RS485 interface, scalable analog output (current) and switching output Fieldbus connection via interface module Easy configuration via sensorTOOL softwar Compatible with numerous sensors offering measuring ranges from 1 ... 80 mm
