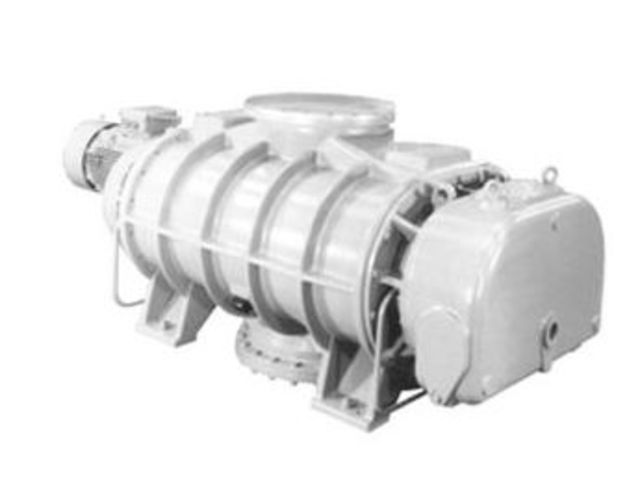

HV Mechanical Booster Pumps HV30000 High Capacity Mechanical EDWARDS SAS

HV Mechanical Booster Pumps HV30000 High Capacity Mechanical

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

Overview HV30000 is a high capacity mechanical booster used in the manufacture and assembly of large industrial vacuum systems. These pumps are backed by Edwards dry pumps or mechanical booster pumps. This range of high capacity booster pumps is designed to operate reliably for long periods with no need for maintenance. The HV pumps can be fitted with an inverter to allow them to be started at atmospheric pressure, at the same time as the dry pumps.

Displacement 50Hz : 30000 m3 h-1/17660 ft3 min-1 Displacement 60Hz : 36000 m3 h-1/21200 ft3 min-1 Maximum pressure differential 50Hz : 24 mbar Maximum pressure differential 60Hz : 29 mbar Recommended backing pumps : IDX1300 and HV8000 Maximum motor power : 55 KW/75 hp Ambient operating temperature : -20 to 40°C /-4 to 140 °F

Semiconductor processing Vacuum distillation Vacuum packaging Steel degassing Thin film coating

Drop your rating on HV Mechanical Booster Pumps HV30000 High Capacity Mechanical

Your answer to the rating from -

OTHER PRODUCTS VACUUM PUMP FROM EDWARDS SAS

Dry scroll pump 1ph 50/60 Hz : nXDS6i

Dry scroll pump 1ph 50/60 Hz : nXDS6i

 Ask for a quote
T-Station 75D NW40 200-230V 50/60Hz

T-Station 75D NW40 200-230V 50/60Hz

 Ask for a quote
T-Station 75D NW40 100-120V 50/60Hz

T-Station 75D NW40 100-120V 50/60Hz

 Ask for a quote
High Throughput STP Pumps

High Throughput STP Pumps

 Ask for a quote
Vapour Pump Diffstak 100/300P, 210-225V, 1-ph, 50/60Hz

Vapour Pump Diffstak 100/300P, 210-225V, 1-ph, 50/60Hz

 Ask for a quote
CDX Dry pumps : CDX1000, 30kW, 50 Hz, Flame Proof with Integral Flame Arrestors

CDX Dry pumps : CDX1000, 30kW, 50 Hz, Flame Proof with Integral Flame Arrestors

 Ask for a quote

Check out all the products from vacuum pump from EDWARDS SAS

INTERNET USERS ALSO CONSULTED ON THE CATEGORY VACUUM PUMP

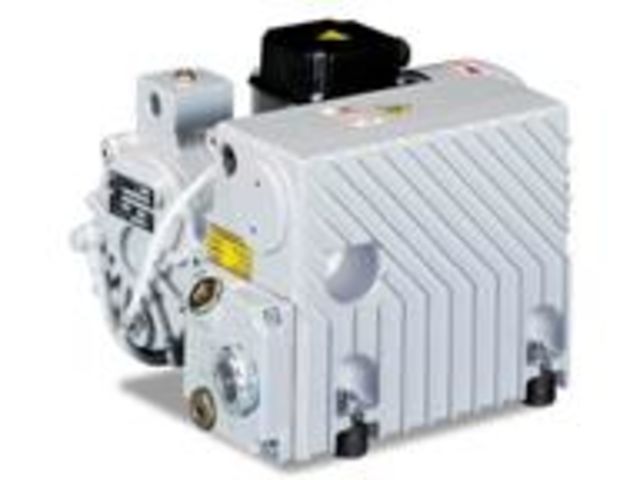

Oil lubricated vane vacuum pumps LB25

Oil lubricated vane vacuum pumps LB25

 Ask for a quote

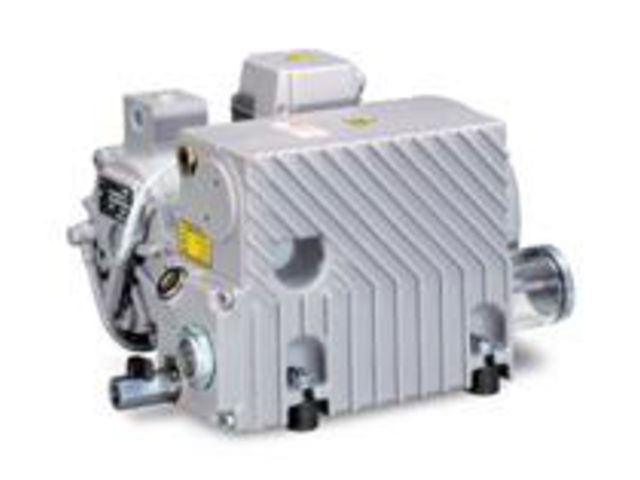

Oil lubricated vane vacuum pumps LB25WR

Oil lubricated vane vacuum pumps LB25WR

 Ask for a quote
Oil free vane vacuum pumps SC100

Oil free vane vacuum pumps SC100

 Ask for a quote

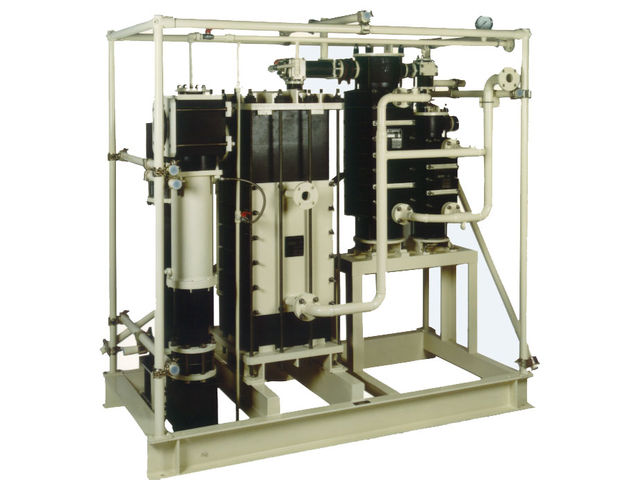

Vacuum generation systems

Vacuum generation systems

 Ask for a quote

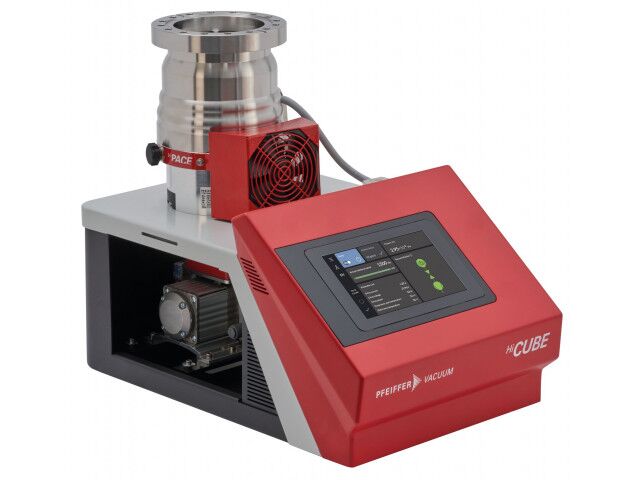

HiCube Neo
