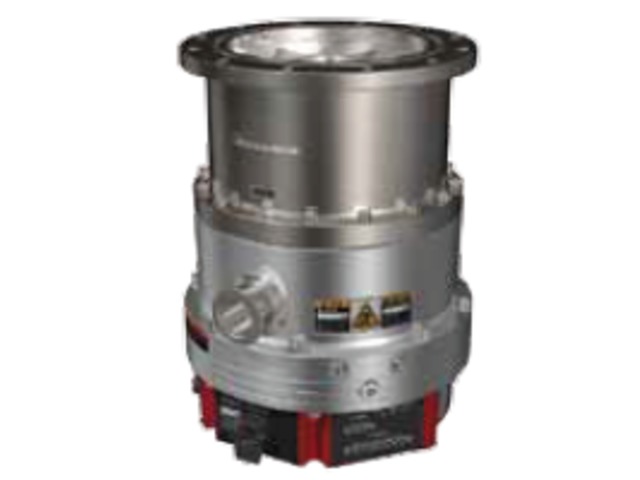

Magnetically levitated turbo-molecular pump : STP-iXR1606 ISO200F EDWARDS SAS

Magnetically levitated turbo-molecular pump : STP-iXR1606 ISO200F

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

STP-iXR1606 series magnetically levitated turbo-molecular pump provides industry-leading performance and incorporates latest technology small power supply into the onboard control which is the same concept with STP-iXA2206/iXA3306 series.

The pumping performance is improved by the newest developed revolutionary rotor design. This fully integrated product offers easy installation and small footprint as an all-in-one solution for all application tools.

Ultimate pressure : 10-7 Pa (10-9 Torr) Allowable backing pressure : 266 Pa (2 Torr) Max Gas size N2 (water cooled only) : 4700 sccm Max Gas size Ar (water cooled only) : 1800 sccm Rated speed : 36,500 rpm Starting time : 8 min Mounting position : Any orientation Input voltage : 200 to 240 (± 10) V a.c. Maximum input power : 750 VA Weight : 48 kg
Download the complete technical features
