Hydro-Jet Vario 1525

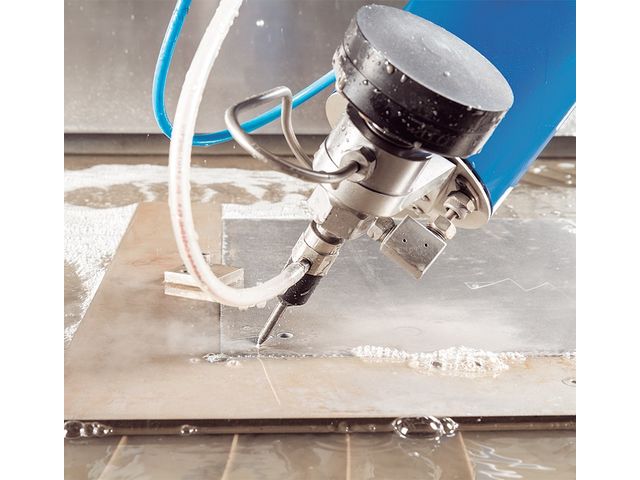

NEW 5-axis cutter system (optional)

• chamfering up to 60°
• TaperControl - cutting angle correction feature for high-precision cutting results
• 5-axis cutting kinematics using harmonic drives = high dynamics and precision
• Endless Rotating = no contour disruption and no repeat plunge-cut required = time and cost savings

Standard Equipment

• completely equipped for Abrasive & Pure-Water Cutting
• Flying Bridge construction, extraordinarily solid design
• All axes are driven via high-quality servo-motors and run on preloaded ball screws
• Work space is open on 3 sides allowing optimum material handling
• High-quality CNC system featuring high operator comfort

• Very large metering bandwidth and high-precision dosing of abrasives
• Infinitely variable metering can be set directly at the machine's control panel

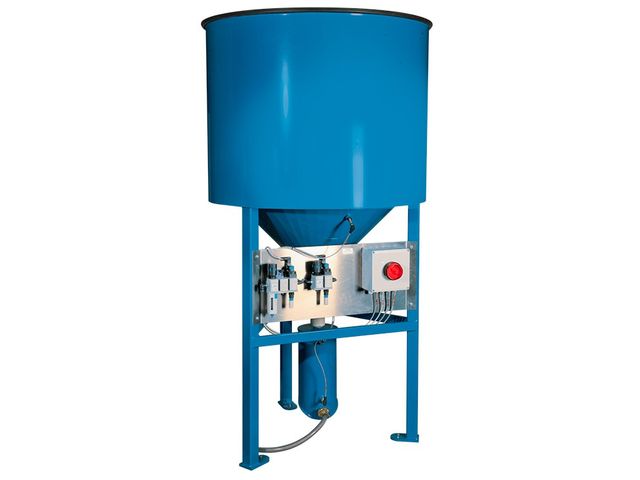

• Large abrasives tank (1 t) accepts entire "big bags" from abrasives suppliers

The Water-Jet is a universal tool with many benefits:

• no thermal stresses, hardening, or tensions on the part
• no dust, smoke or toxic fumes
• small kerf width and very clean cut edges
• virtually burr-free cuts = no rework necessary
• direct plunge-cut at any position
• very low mechanical stress on the part

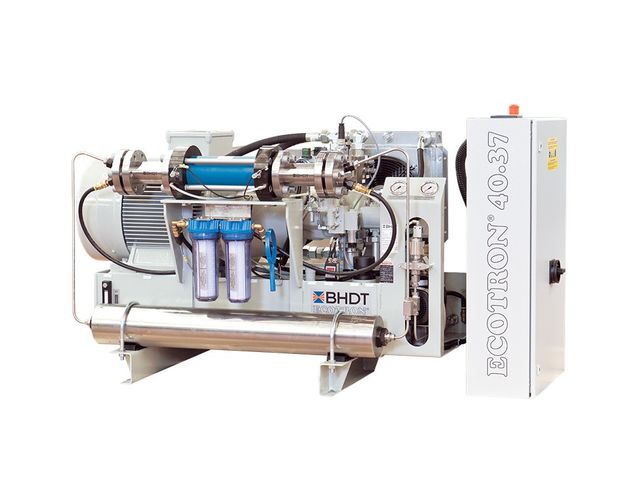

BFT Ecotron 38.37 High-Pressure System (standard)

• The most cost-effective high pressure pump made by a world leading manufacturer
• Operating pressure can be adjusted from 50 to 400 MPa via an infinitely variable proportional valve
• All components are mounted on a base frame, enclosed within a sound proofing enclosure; the electric control is within a control cabinet that also is mounted on the base frame
• Optimized hydraulics for extremely fast switch-over
• Oil/air cooler or optional oil/water cooler
• Pressure booster with large plunger diameter and long stroke ensures long life
• Pressure booster with exceptional lifetime and large pulsation damper
• maximum power and reliability for pure-water and abrasive cutting operations
• maximum operator safety and low maintenance
• Water supply will be interrupted automatically when the pump is shut off
• Pulsation damper with large reservoir (1.6 l) reduced pressure fluctuations
• Pressure relief valve is standard
• All warnings and monitoring functions are displayed in plain text on a touchscreen monitor

• hydraulic drive with axial-piston pump
• Oil/water heat-exchanger for oil cooling system
• pressure booster, complete with high-pressure tubing
• Pulsation damper with pressure accumulator
• relief valve integrated in the high-pressure circuit

The Hydro-Jet High-Pressure System with pressure transmitter is based on a high-pressure pump with hydraulic drive, pressure transmitter, pulsation damper, pre-filter unit, and pressure relief valve - all mounted on a common base frame.

The quick-relief valve maintains atmospheric pressure in the pipe system upon completion of the cutting process. Sound proofing enclosure is available to dampen the noise level and to protect the high pressure system.
