“ These water-jet cutting systems offer a wiede variety of applications and expansion options ”
Ask for a quoteReceive DocumentationContact the supplier

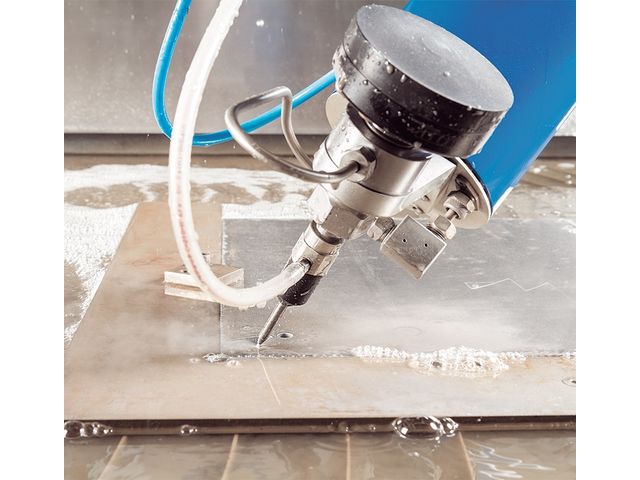

NEW 5-axis cutter system (optional)
• chamfering up to 60°.
• TaperControl - cutting angle correction feature for high-precision cutting results.
• 5-axis cutting kinematics using harmonic drives = high dynamics and precision.
• Endless Rotating = no contour disruption and no repeat plunge-cut required = time and cost savings.
Standard Equipment
• completely equipped for Abrasive & Pure-Water Cutting.
• Flying Bridge construction, extraordinarily solid design.
• All axes are driven via high-quality servo-motors and run on preloaded ball screws.
• Work space is open on 3 sides allowing optimum material handling.
• High-quality CNC system featuring high operator comfort.

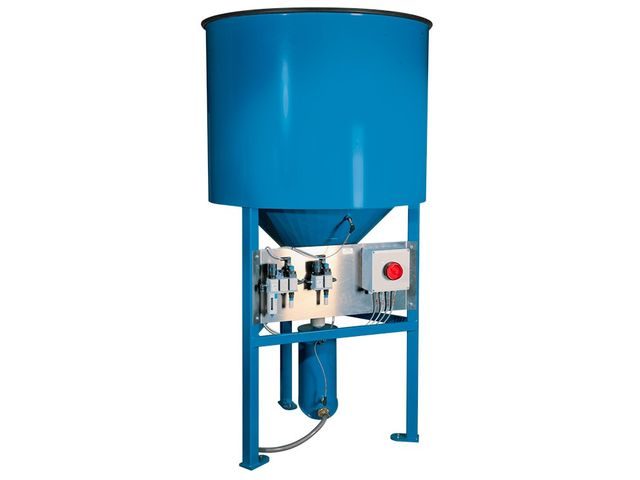

ALLFI Abrasives System
• Very large metering bandwidth and high-precision dosing of abrasives.
• Infinitely variable metering can be set directly at the machine's control panel.
• Large abrasives tank (1 t) accepts entire "big bags" from abrasives suppliers.
The Water-Jet is a universal tool with many benefits:
• no thermal stresses, hardening, or tensions on the part.
• no dust, smoke or toxic fumes.
• small kerf width and very clean cut edges.
• virtually burr-free cuts = no rework necessary.
• direct plunge-cut at any position.
• very low mechanical stress on the part.
BFT Ecotron 38.37 High-Pressure System (standard)
• The most cost-effective high pressure pump made by a world leading manufacturer.
• Operating pressure can be adjusted from 50 to 400 MPa via an infinitely variable proportional valve.
• All components are mounted on a base frame, enclosed within a sound proofing enclosure; the electric control is within a control cabinet that also is mounted on the base frame
• Optimized hydraulics for extremely fast switch-over.
• Oil/air cooler or optional oil/water cooler.
• Pressure booster with large plunger diameter and long stroke ensures long life.
• Pressure booster with exceptional lifetime and large pulsation damper.
• maximum power and reliability for pure-water and abrasive cutting operations.
• maximum operator safety and low maintenance.
• Water supply will be interrupted automatically when the pump is shut off.
• Pulsation damper with large reservoir (1.6 l) reduced pressure fluctuations.
• Pressure relief valve is standard.
• All warnings and monitoring functions are displayed in plain text on a touchscreen monitor.
Standard equipment : Water-Jet Cutter System with separate cutting table, stainless steel support slats, BFT Ecotron 40.37 high-pressure pump with soundproofing enclosure, proportional valve, back-pressure valve, abrasive cutter head, High pressure filter at cutting head, abrasives conveyor system, abrasives tank (1000 kg), swiveling control panel with TFT monitor attached to the machine, electronic hand-wheel, GPlus 450 Cut CNC, CAD/CAM software with nesting program, operating manual and programming instructions.
All you need to run your factory !
