IMPAC Pyrometer IGA 8 pro LumaSense Technologies GmbH

IMPAC Pyrometer IGA 8 pro

Pyrometers

Vote

Ask for a quote Receive Documentation Contact the supplier

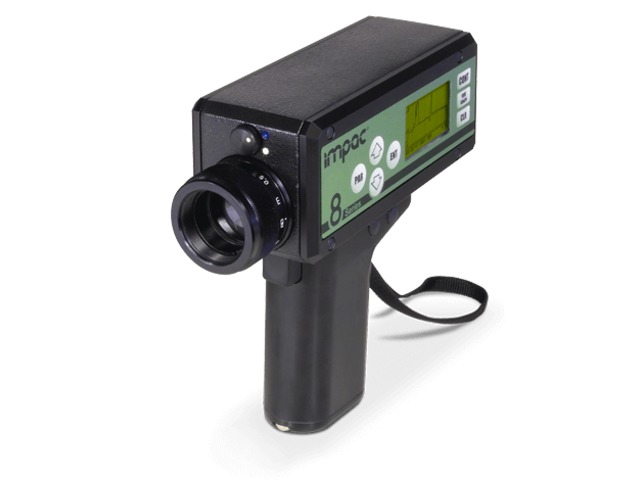

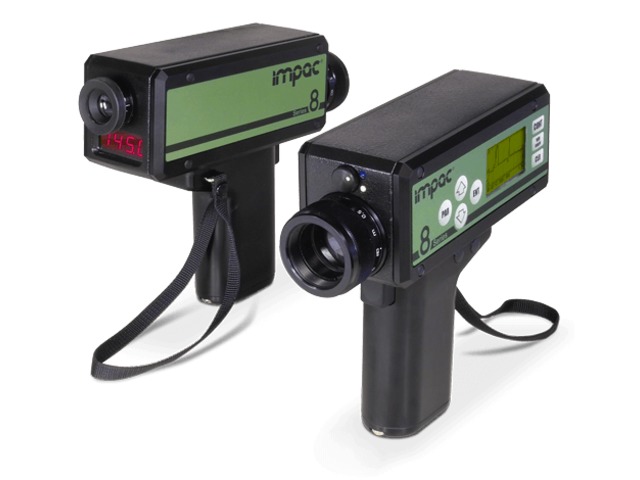

Portable digital pyrometers for non-contact temperature measurement between 250 and 2000 °C.


The series 8 pyrometers are high-quality, battery driven portables for non-contact temperature measurement.

The pro series is a revision of the 15 years proven plus series. The instruments feature fully digital signal processing, resulting in wider temperature ranges as well as higher accuracy.

With the additional integrated graphic display the measuring results can be shown and analyzed directly on site.

The aluminium die-cast housing is specially designed for the daily use under rough industrial conditions. The easy focusable precision optics provides small spot sizes for measuring distances between 500 mm and ∞.

The bright, optimized view finder with exact spot indication and built-in temperature display facilitates the accurate aiming on the object. Moreover, the large measurement data storage offers the best possibility for subsequent interpretation of the measured values.

The extremely short response time of 1 ms allows exact measurements of fast moving objects and a very quickly detection of temperature differences. The maximum temperature can be stored in the built-in peak picker (maximum value storage).

For high temperatures the IS 8 pro is available in two temperature ranges between 600 and 2500 °C, for the medium temperatures the IGA 8 pro with a range from 250 to 1600 °C. The IS 8-GS pro is a special version for use in foundries.

The instruments are mainly used in the steel- glass-, forging industry and in foundries.

Spectral Ranges : 1.45 to 1.8 μm Measurement Accuracy : 0.4% of reading + 1ºC (at ε=1, Tamb=23 ºC) Temperature Coefficient : 0.01% / K (Tamb=23 ºC) of reading Repeatability : 0.1% of reading or 0.8 ºC (the larger value is valid; at ε = 1, Tamb=23 ºC) Resolution : LED inside: 1 °C/°F; LED outside: 0.1° up to 1000 °C/°F, after this: 1°; LCD: 0.1 °C/°F Response Time t90 : 1 ms (IS 8-GS pro: 0.5 s) Emissivity ε : Adjustable from 10 to 100% in 0.1% steps Measuring Functions : Normal (normal temp. measurement), MAX (maximum value measurement), AVG (average temperature) Parameters : Emissivity, direct emissivity setting; storage interval, temperature indication in ºC or ºF Instrument Settings : Side keypad
Download the complete technical features
