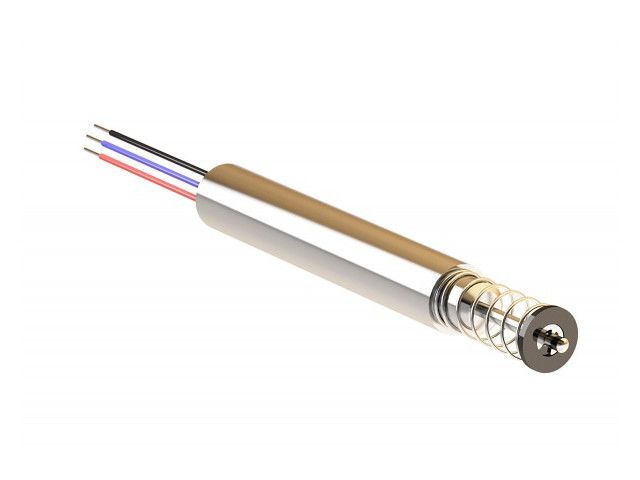

Inductive linear displacement transducer IW101 TWK-ELEKTRONIK GmbH

Inductive linear displacement transducer IW101

Inductive movement sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

The displacement transducers operate according to the principle of the differential choke, i.e. an inductive half bridge. They consist of two coils which are encapsulated in a stainless steel cylinder ensuring positive protection against vibration, shock, humidity, oil and corrosive matter. A mu-metal plunger core causes opposing changes of inductance when it is displaced through the centre of the coils. The displacement transducers are designed for a carrier frequency of 10 kHz. Other frequencies can be used but may involve changes of output values.

Measuring ranges available: Up to 15mm Special feature: External electronics, Full casting
Download the complete technical features
