Injector synchronization module for INJETVISION system EFS (Etudes Fabrications Services)

Injector synchronization module for INJETVISION system

Test and Repair

Vote

“ • Easy installation • Efficiency • Compact ”
Ask for a quote Receive Documentation Contact the supplier

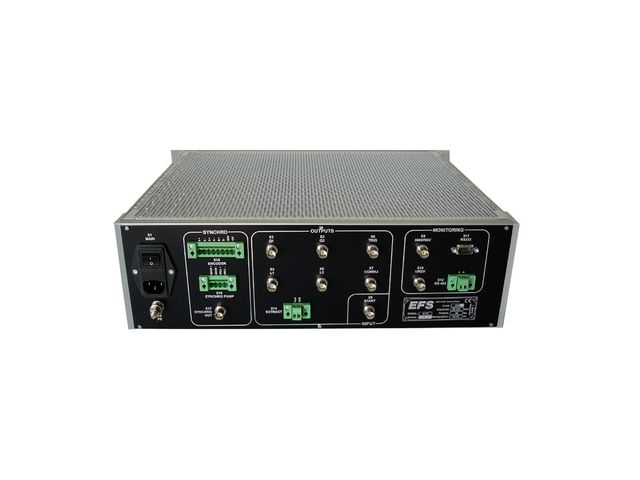

The EFS 8412  module  is designed for use with the Injetvision test bench which analyzes diesel or petrol jets automatically by image processing.

It also drives the injector by means of the IPoD power module as well as driving the camera, the fog extraction system and the light sources (laser or stroboscopic).

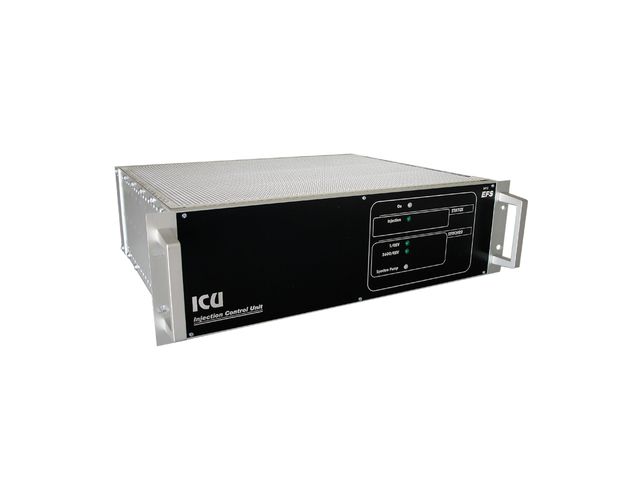

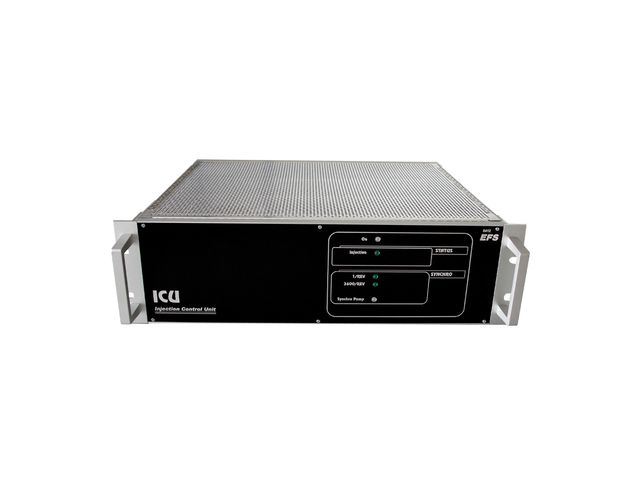

The ICU system provides the command signals for driving an injector and all the equipment necessary for obtaining the images. It also requires the addition of a power module adapted to the type of injector being driven, either an IPoD coil  (for solenoid type injectors) or an IPoD piezo (for piezo-electric injectors).

The ICU system drives the injector with a time resolution of 0,1 µs. It can command from 1 to 10 injections per revolution at frequencies of between 0.1 and 10 Hertz.It can operate in 2 different modes: « Signal generator » mode or « Synchronized » mode.

ICU: Injector control synchronizer 0.1 µs temporal resolution from 1 to 10 injections per revolution IPoD Coil (solenoid injector) IPoD Piezo (piezo injector)

Industry

Drop your rating on Injector synchronization module for INJETVISION system

Your answer to the rating from -

INTERNET USERS ALSO CONSULTED ON THE CATEGORY TEST AND REPAIR

BGA Rework Station - PDR IR-E3 Evolution

BGA Rework Station - PDR IR-E3 Evolution

 Ask for a quote

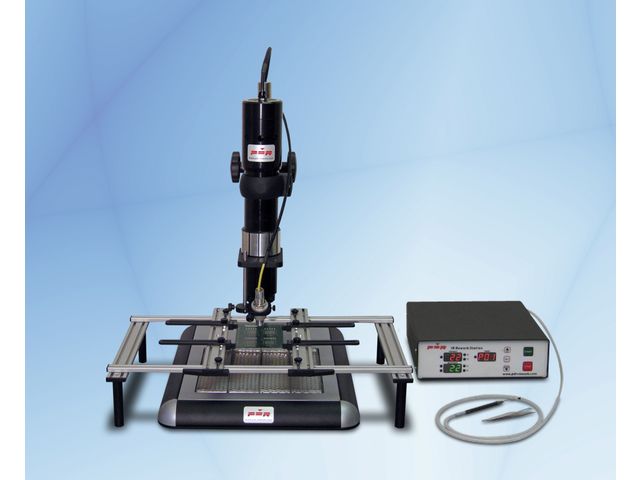

PDR’s Entry-Level SMT/BGA Rework Station - IR-C3 Chipmate

PDR’s Entry-Level SMT/BGA Rework Station - IR-C3 Chipmate

 Ask for a quote

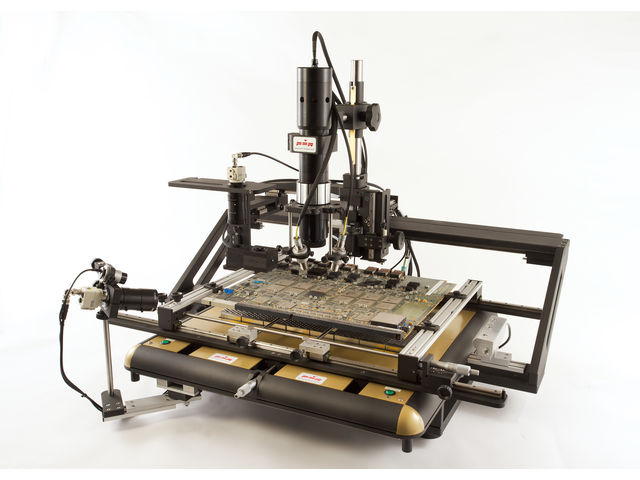

PDR’s Focused IR SMT/BGA Rework Station For Large PCB, BGA Rework - IR-E6 Evolution XL
