Inspection Systems : BTM4

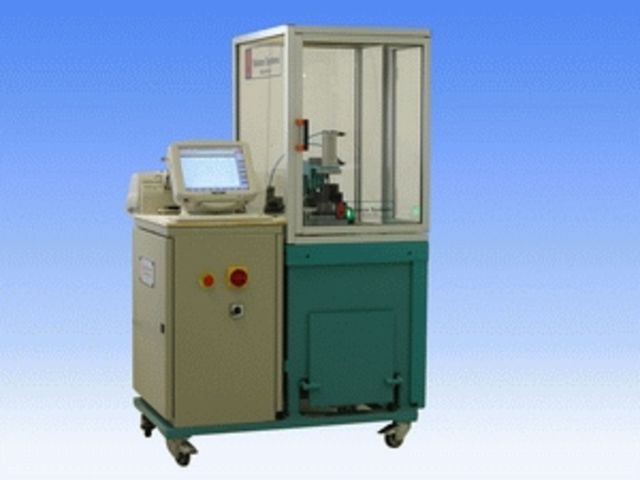

Laboratory equipment for the multifunctional test of vacuum cleaners bodies.

Equipment composed of a wheeled monolithic structure comprising:
- The housing for the vacuum cleaner body inside a
safety protection;
- A negative pressure case, provided with a variable
diaphragms system;
- Measurement sensors of test units and ambient
climatic ones.
- A cabinet containing the electric supply, and the
measuring electronic that supports the control PC and
the printer.
Available tests:
.according to airflow rate q (dm3/s) tracing of
characteristic curves:
- h (mm H2O) = chamber negative pressure
- Pa (W) = absorbed power
- Pr (W) = output power
- h = efficiency;
- n = r.p.m.
.calculation of the rating plate power (average);
.determination of the temperature change of the rotor
and stator windings after a preset operation time;
.execution of operational control cycles for brushes
and collector wear.
.as optional, mechanical and vibration noise level
quality analysis.
Provided with human interface, in different languages, on Windows XP platform.
Reports filing in Excel format.
Calibration certificates and procedures in place for all the measure channels.
Access password and diagnostic programs.
