Intel® 12th-Gen Core™ Fanless Industrial PC | Nuvo-9000 Neousys Technology Inc.

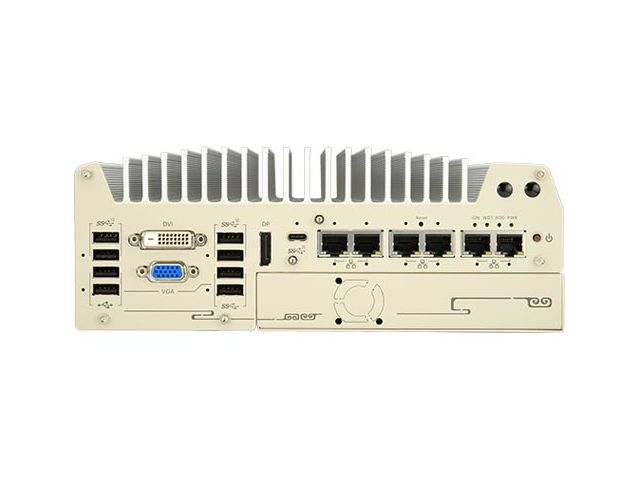

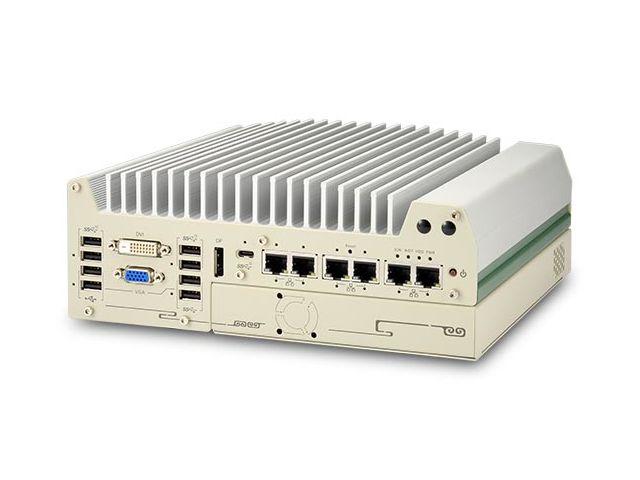

Intel® 12th-Gen Core™ Fanless Industrial PC | Nuvo-9000

Fanless PC

Vote

Ask for a quote Receive Documentation Contact the supplier


Nuvo-9000 series is Neousys' new rugged embedded computer based on Intel® 12th-Gen Alder Lake platform. Benefiting from cutting-edge Intel 7 photolithography, the latest Core™ desktop processor comes with up to 16 cores and 24 threads and presents an incredible boost of computational performance. Combining the increase of DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.

Nuvo-9000 series inherits Neousys' patented expansion Cassette design to provide great versatility by allowing additional installation of PCIe or PCI add-on cards. There are three expansion Cassette options available for Nuvo-9000 series, the Nuvo-9000E features a single x16 Gen3 PCIe slot; Nuvo-9000DE has dual x16 PCIe slots, and Nuvo-9000P has a single PCI slot. For users who need more flexible storage, Nuvo-9000LP has a 2.5" HDD tray instead of an expansion Cassette to support a hotswappable 2.5" HDD/SSD.

I/O functions are also comprehensively enhanced. In addition to six gigabit Ethernet ports with PoE+ PSE option, Nuvo-9000 series features a USB 3.2 Gen2x2 type-C port offering 20 Gbps bandwidth for data exchange with external devices, plus another six USB 3.2 Gen2x1 type-A ports for USB3 camera connectivity. It also has an upgraded M.2 Gen4x4 slot to support the latest NVMe SSD to boost disk read/write speed up to 7000 MB/s. For unfulfilled I/O requirements, users can utilize the expansion Cassette to add on function-specific PCIe/ PCI card, the proprietary MezIO interface, and internal mini-PCIe/M.2 interfaces.

With its field-proven thermal design, significant CPU and I/O upgrades, and multiple expansion methods, the Neousys Nuvo-9000 series fits your need for ruggedness, performance, and versatility for a variety of applications.

Supports Intel® 12th-Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU Patented Cassette for PCI/PCIe add-on card accommodation Rugged, -25°C to 70°C fanless operation Up to 6x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame 1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 Gen2x1 type-A ports Supports M.2 Gen4x4 NVMe and 2x SATA ports MezIO™ interface for easy function expansion VGA/ DVI/ DP triple independent display, supporting 4K2K resolution
Download the complete technical features

Industrial Production Factory Automation In-vehicle
