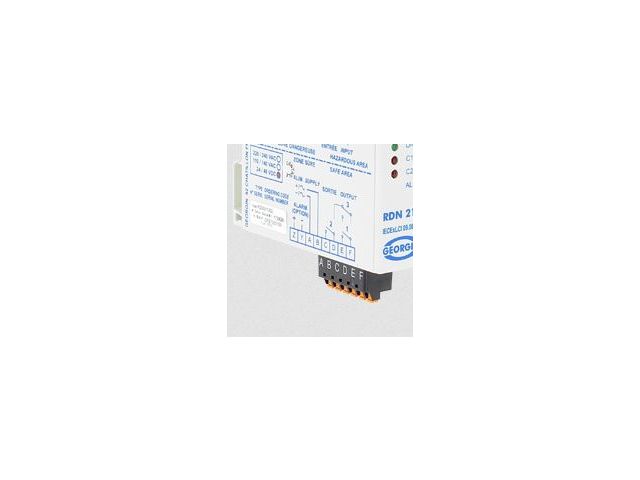

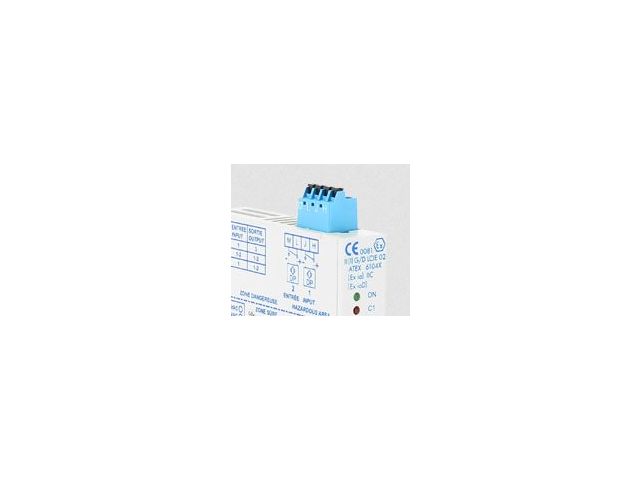

This device is designed to relay digital signals coming from a switch or a proximity sensor installed in hazardous area to the safe area.
Input : Switch or proximity sensor
Output : Switch (5A – 250V) or transistor (5kHz)
Supply : 24-48 VDC, 110 VAC or 230 VAC
Model : 1 or 2 channels and signal duplicator (1 input – 2 outputs)
Red LED for relay state, and green LED for presence of voltage
Installation : Safe area
Options :
• Alarm (loop integrity with proximity sensor)
• Screw terminals
• Icc current limited to 20mA or 5mA according to codification
• ACCDIVBX power supply cables
• Ex d enclosure - RTPE9-DIN or other Ex d enclosure
EC Type examination certificate number : LCIE 02 ATEX 6104X
IECEx conformity certificate : LCI 09.0013X
ATEX/IECEx classification : II (1) GD [Ex ia] IIC or [Ex ia] IIB or [Ex iaD]
