Switching cam encoder NOCN

Relays

Vote

Ask for a quote

Presentation

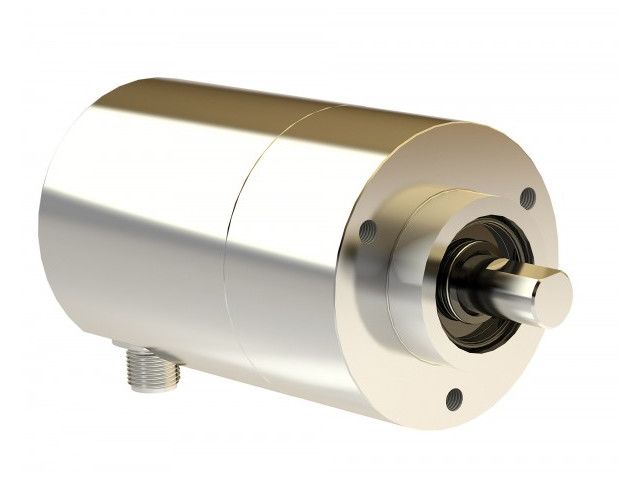

This involves a play-free electronic switching cam encoder (abbreviated to: NOCN) with a maximum of four galvanically separated switching outputs (cams), which can be set by the customer and which are activated or deactivated depending on the relevant position of the drive shaft. A parameterisable multiturn absolute encoder with CANopen interface plus the switching cam encoder printed circuit board with separate controller are integrated into the compact housing. The encoder's CANopen position signal and the switching outputs can be parameterised separately. Parameterisation is carried out via the relevant CANopen objects in accordance with the encoder profile according to CiA, DS 406, revision 4.01. The NOCN has a fault monitoring system which outputs a fault message via the CANopen bus (emergency message) on detection of a fault.

Technical features

Interface: CANopen, Relais Single- or Multiturn: Multiturn Design: 58mm, 64mm, 65mm, 66mm, 79mm, 120mm Number of switching outputs: 2 switching outputs, maximum of 4, max. 6 with NOCN79 (relay/PhotoMOS) Housing material: Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 Resolution: 4096 = 12-bit, 13-bit maximum (= 8192) Code type: Binary Measuring range: 16 revolutions, 256 revolutions, 4096 revolutions Profile: CANopen according to CIA, DS 406 revision 4.0.1
