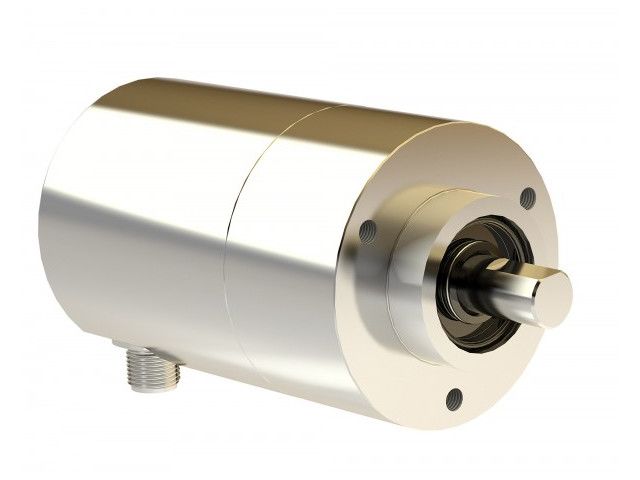

Switching cam encoder NOCE TWK-ELEKTRONIK GmbH

Switching cam encoder NOCE

Relays

Vote

Ask for a quote Receive Documentation Contact the supplier

This involves a play-free electronic switching cam encoder (abbreviated to: NOCE) with a maximum of four galvanically separated switching outputs, which can be set by the customer and which are activated or deactivated depending on the relevant position of the drive shaft. A parameterisable multiturn absolute encoder with SSI interface plus the switching cam encoder printed circuit board with separate controller are integrated into the compact housing. The SSI interface can be preset, the code direction can be set and the switching outputs can be preset.

Interface: Relais, SSI Single- or Multiturn: Multiturn Design: 64mm Flange and shaft: Clamping flange Number of switching outputs: 2 switching outputs, max. 4 (with model NOCAE79 up to 6) Housing material: Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 Resolution: 4096 steps/360°, maximum of 8192 steps/360° Code type: Binary, Gray Measuring range: 16 revolutions, 256 revolutions, 4096 revolutions Electrical connection: Device connector
Download the complete technical features
