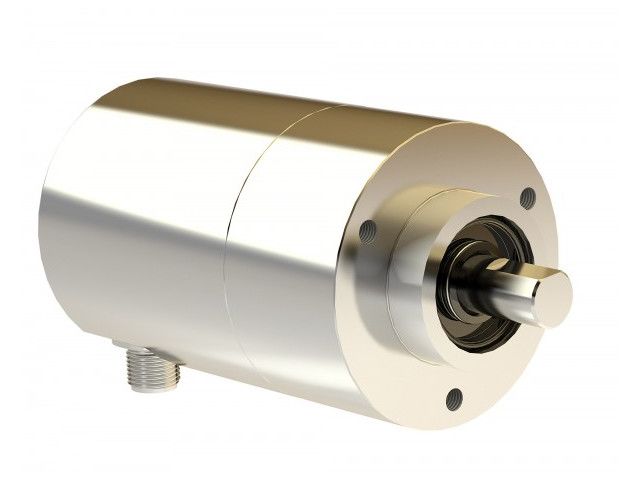

Switching cam encoder NOCA TWK-ELEKTRONIK GmbH

Switching cam encoder NOCA

Relays

Vote

Ask for a quote Receive Documentation Contact the supplier

This involves a play-free electronic switching cam encoder (abbreviated to: NOCA) with a maximum of four galvanically separated switching outputs (cams), which can be set by the customer and which are activated or deactivated depending on the relevant position of the drive shaft. A parameterisable multiturn absolute encoder with analogue interface plus the switching cam encoder printed circuit board with separate controller are integrated into the compact housing. The analogue signal and switching outputs can be parameterised separately using multifunction pins (MFP and PRE) in the connector.

Interface: Analogue, Relais Single- or Multiturn: Multiturn Design: 64mm, 120mm Flange and shaft: Clamped flange (NOCA 64), Mounting flange (NOCA 120) Number of switching outputs: 2 switching outputs, max. 4 (with model NOCA79 up to 6) Housing material: Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 Measuring range: 5760° = 16 revolutions (any values up to 1,474,560° = 4096 revolutions possible) Signal path: CCW, CW Electrical connection: Cable connection, Device connector M12 Output signal analogue: Output signal analogue
Download the complete technical features
