IRCON ScanIR3 Infrared Linescanner & Thermal Imaging System

Pyrometers

Ask for a quote

Presentation

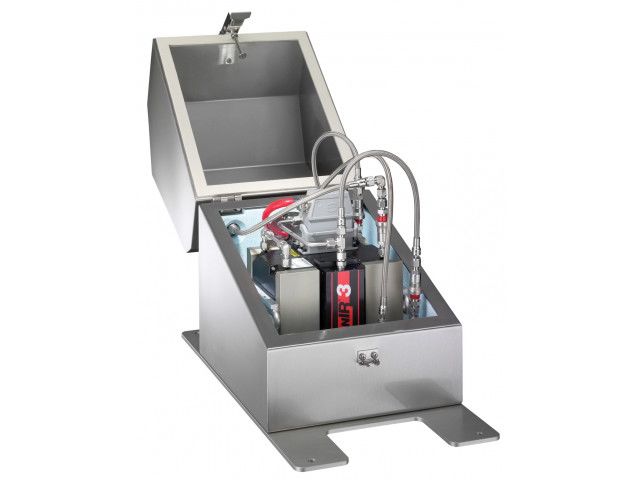

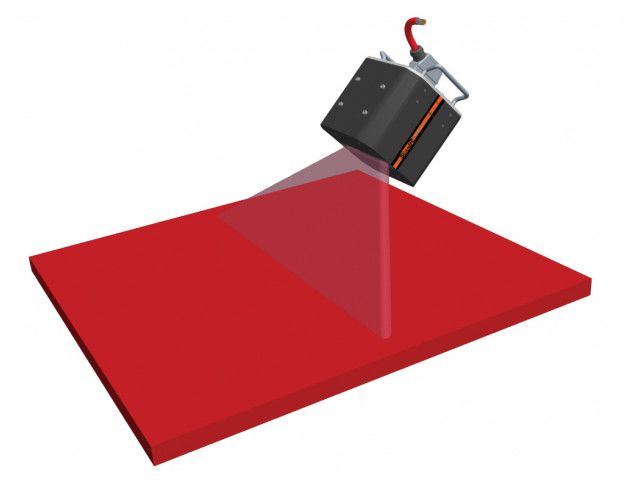

The IRCON ScanIR3 infrared linescanner provides real-time, thermal imaging of continuous sheet and web-based processes as well as discrete manufacturing processes. The robust housing includes built-in provisions for water-cooling and air-purge, and features built-in laser sighting. A rugged processor box provides universal input and output capabilities in the field without the need for an external computer.
The versatile ScanView Pro software allows for custom configuration of operating parameters and display of thermal images and temperature profiles on a standard PC.

Features:
Fast scan speed up to 150 lines per second
Up to 1024 measurement points per line
High optical resolution up to 200:1 (allows for installation further from the measured process with excellent precision)
Reliable Ethernet communication (optional fiber optics)
Brushless scanning motor
Field-replaceable window
One bundled sensing head cable with one-click connector to the scanner

Technical features

Spectral range: 1 µm...5 µm (dependent on model) Measured temperature range: 30°C ... 1200°C (dependent on model) Optical scan rate: Up to 150Hz (256 points per line) Measurement points per line: Up to 1024 Optical resolution: Up to 200:1 Interfaces: Ethernet (optional fiber optics) TCP/IP 10/100 Mbit/s Environmental rating: IP65 (IEC 60529) Ambient operation temperature: 0–50°C / 32–122°F; with integr. water-cooling up to 180°C/356°F; w. integr. heater min. -40°C/-40°F Field of view: 90° Power supply: 100 – 240VAC, 44/66Hz
