ISO 15552 single and double acting pneumatic cylinders - X-series

Double effect pneumatic cylinder

Vote

“ ✔ Interchangeable cylinders ISO 6431 ✔ Mounting dimensions according to ISO 15552 ”

Ask for a quote

Presentation

The ISO 15552 X-series single and double acting pneumatic cylinders are used in a variety of applications using filtered, lubricated or unlubricated compressed air. They are available in 6 bore sizes with diameters of 32, 40, 50, 53, 80 and 100 mm.

With mounting dimensions according to ISO 15552, the X series pneumatic cylinders are completely interchangeable with ISO 6431 cylinders.

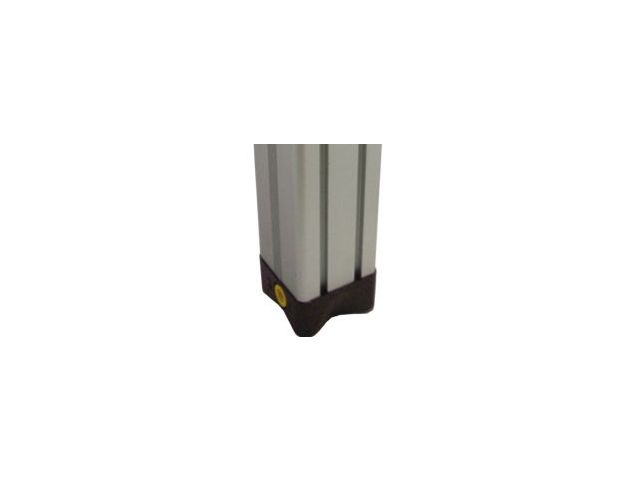

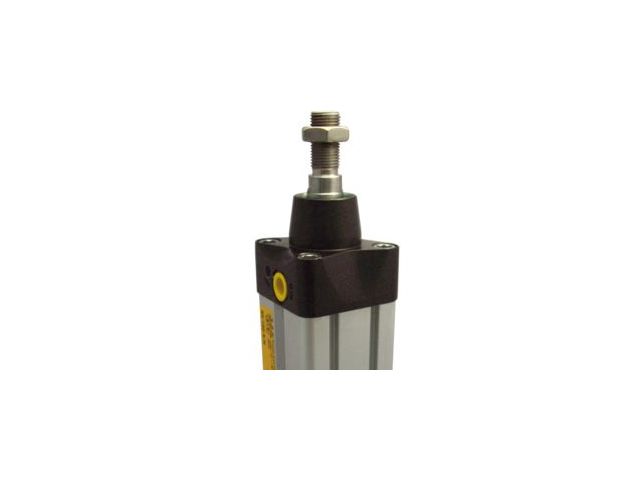

Also supplied in the "through rod" version, the X series pneumatic cylinders consist of a 20 µm anodised aluminium tube (extruded profile with T-slots), a polymer piston (supplied with or without electromagnet), a ground chromium steel rod (AISI 303 stainless steel on request), steel screws etc...

https://www.senga.fr/en/products-e-shop

Technical features

Guide spout: sintered anti-friction bronze bushing Seals: polyurethane (Viton on request) Heads: aluminium alloy with paint coating Decelerators: adjustable as standard Minimum stroke: 5 mm Maximum stroke: 3,000 mm double acting Stroke tolerance: +/- 1.5 mm Cushioned stroke length: from 24 mm to 40 mm depending on diameter Ambient temperature: between 0°C and +80°C (with dry air -35°C) Working pressure: between 1 bar and 10 bar
