KDSClick Cable gland CONTA-CLIP Verbindungstechnik GmbH

KDSClick Cable gland

Tools

Vote

Ask for a quote Receive Documentation Contact the supplier

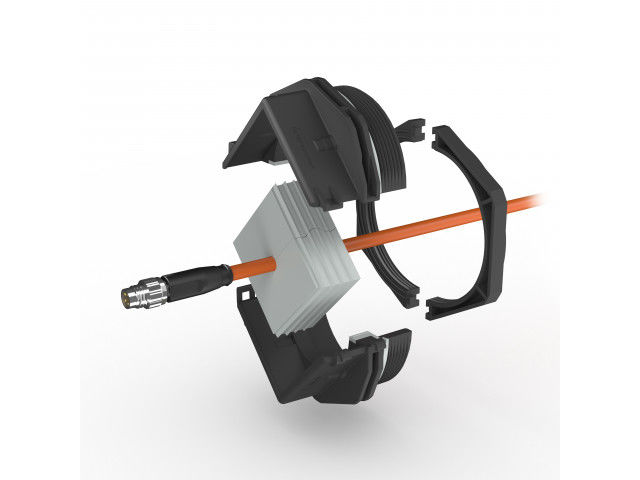

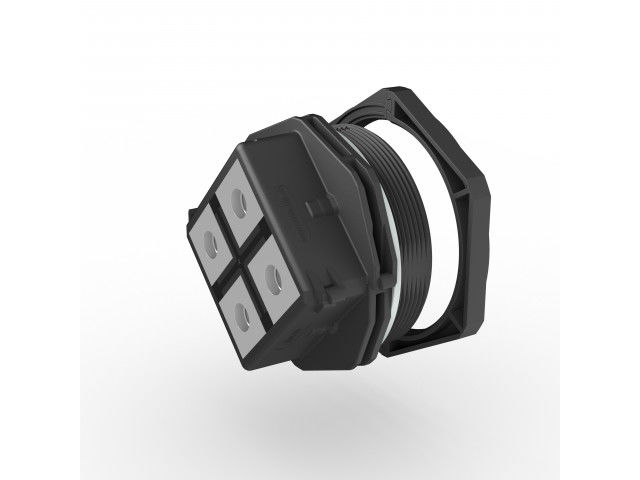

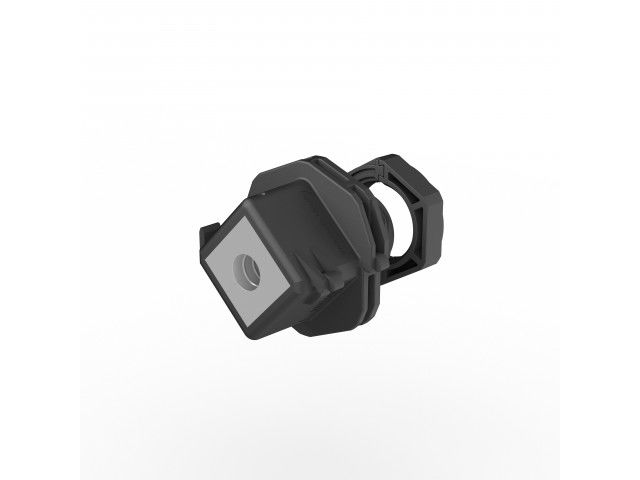

KDSClick: separable cable glands For metric break-outs, CONTA-CLIP provides separable cable glands from M20 to M63 for cables with or without connectors. During servicing or retrofitting with pre-assembled cable harnesses, cables with diameters from 2 to 35 mm can quickly and safely be guided into the switchgear cabinet or housing, and then sealed to IP66. The divisible system ensures quick and simple assembly. The slitted seal has a wave-cut profile that ensures a reliable seal and a totally secure attachment. The seal is first placed around the cable and then inserted in one of the two halves. Depending on the size of the cable gland, up to four seals can be inserted. After that, the two halves of the cable gland are easily snapped together without the use of any tools. A locknut (which can also be separated) on the inside of the cabinet ensures a safe and secure attachment.

Article description: separable cable glands Colour: Black Length (mm): from 40 to 72 mm Width (mm): from 40 to 72 mm Height (mm): from 38,70 to 39,70 Material: PA6.6 glass-fibre reinforced Protection: IP66 Temperature range: -40°C to 120°C Thread size (mm): from M20 to M63 Thread length (mm): 15
Download the complete technical features
