Laser engraving machine - CompactMark - LASIT LASIT

Laser engraving machine - CompactMark - LASIT

Laser marking

Vote

Ask for a quote Receive Documentation Contact the supplier

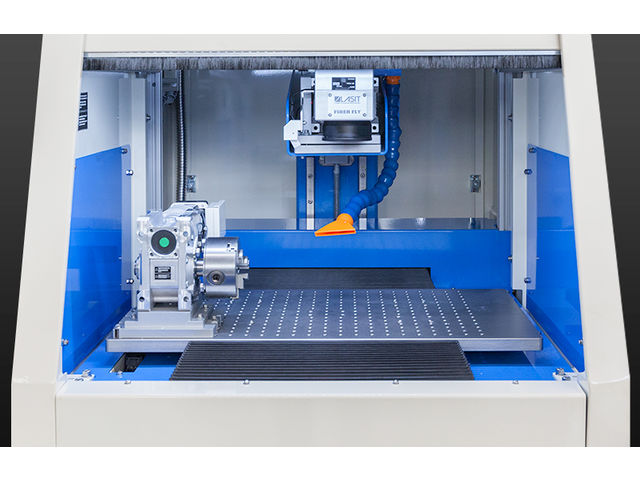

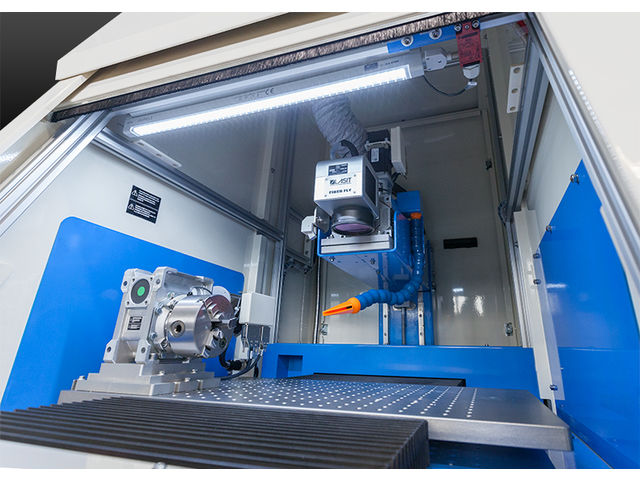

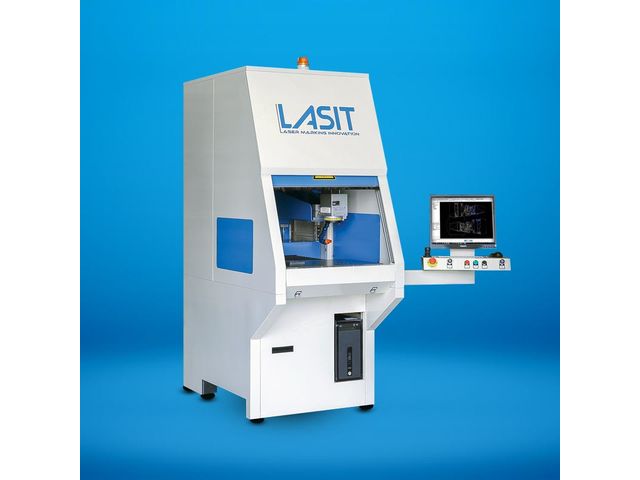

Compact only in size but big in performance, the CompactMark is a multi-functional center for laser marking. Made entirely of welded steel, and precision machined with ground ways and ball screws, it is configured with 3 standard positioning axes that can be expanded to 9 axes with optional “C” axis, rotating head, palletized pick and place or conveyors.

The precision and rigidity of the CompactMark featuring a marking area of 560x400mm or larger, provides the greatest accuracy when tight tolerances are required. The system is designed to engrave one part, an array of parts, as well as an entire pallet with hundreds of parts while maintaining repeatability, accuracy and perfect centering.

The table can support parts weighing up to 150kg. The Z axis, operated by the FlyCad marking software, allows us to mark different thicknesses up to 400mm. All motors feature integrated encoders which can be controlled via a 3-axis joystick. This state of the art Smart Focus Technology enables the operator to utilize the preview function and immediately focus and center with no effort to begin marking. The CompactMark is available as both a standard or customized system with varying sizes to meters with optional full gantry and smaller footprint as well as other automated option including palletized and robotic pick and place systems, multiple rotary axes, vision systems for recognition, centering and verification, and conveyors. The system is pre-designed to accept a fume exhaust filtration system depending on materials to be marked.

Working position: Stand up Working plane dimensions: 560 x 400 Max weight on the plane: 150Kg Markable max height (ø 140mm): 460mm Available marking areas: ø100, ø140, ø220 Vision system: Optional – both TTL and Reflex Type of engine: Up to 5 motors with the encoder Joystick: Included Type of door: Pneumatic Exhaust fan and filter: Optional
Download the complete technical features
