Fiber & MOPA Laser Marking Machine | DESKMARK

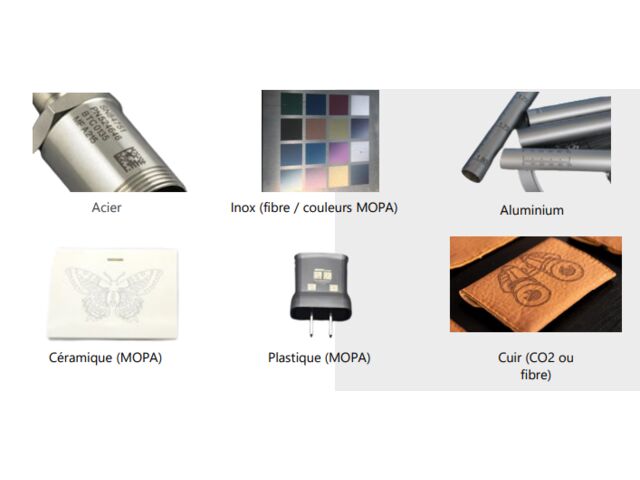

“ Compact and ergonomic design. High versatility for a wide range of marking applications. Optimized work area for efficient operation. ”

Ask for a quote

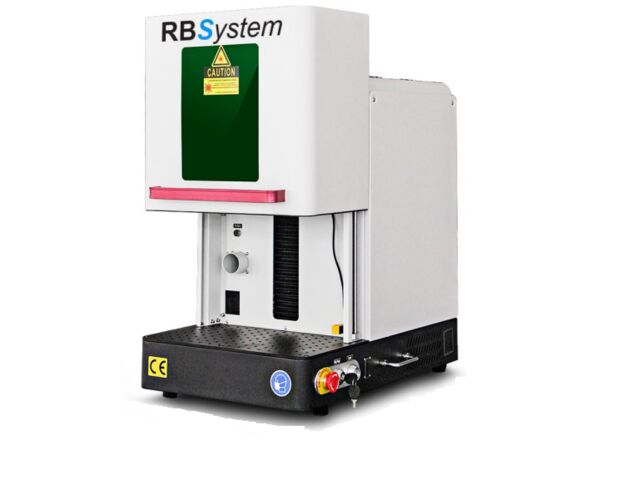

The DESKMARK Fiber and MOPA Laser Marking Machine is designed to provide a compact and high-performance solution in an ergonomic format.

With dimensions of 670 × 425 × 680 mm, it features a 400 × 290 mm access door that facilitates access to the working area.

Its 300 × 200 mm marking table, equipped with M6 mounting holes, ensures precise workpiece positioning.

The 300 mm Z-axis and a focal distance of approximately 200 mm (with a 110 × 110 mm lens) allow easy adaptation to different workpiece heights, up to approximately 85 mm with a 110 × 110 mm lens and 160 mm with a 70 × 70 mm lens.

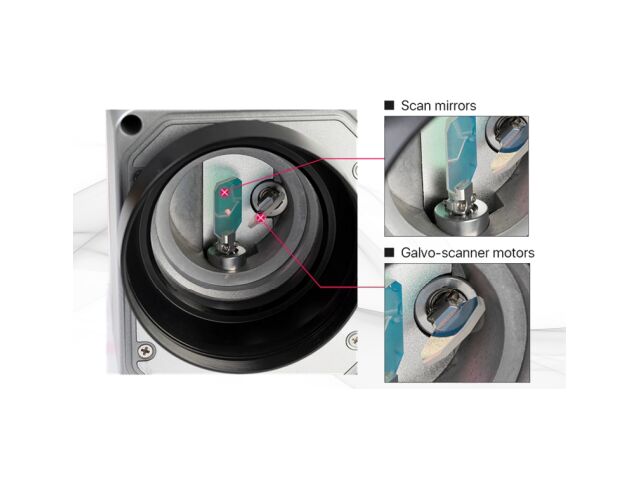

Weighing approximately 50 kg, the machine supports loads of up to 15 kg on the worktable. Each configuration includes a laser source (according to application requirements), a galvanometer scan head with optional autofocus, a worktable, a complete control computer (on the TOPMARK model), French-language marking software, a door safety system, and a protective enclosure.

Options such as a rotary axis, a fume extraction system, or an XY cross table further enhance its versatility and enable it to meet a wide range of marking requirements.
