Fiber & MOPA Laser Marking Machine | PORTMARK

Laser marking

“ Easy mobility and deployment Large marking capacity Maximum versatility ”

Ask for a quote

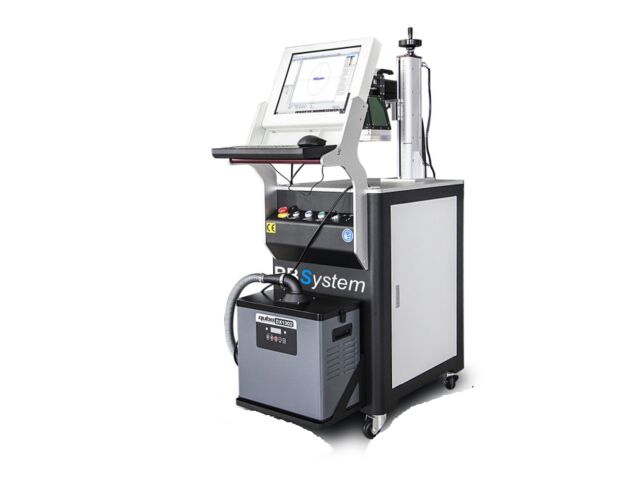

The PORTMARK Fiber and MOPA Laser Marking Machine is a portable solution designed to provide flexibility, performance, and precision in environments where mobility is essential.

With dimensions of 1,000 × 600 × 1,300 mm, it is a compact and easily deployable system while offering a generous work area thanks to its 550 × 680 mm table equipped with M6 mounting holes for optimal workpiece positioning.

Its 500 mm Z-axis, combined with a focal distance of approximately 200 mm (with a 110 × 110 mm lens), allows the machine to be quickly adapted to parts up to 400 mm in height.

Weighing approximately 250 kg, the PORTMARK is robust enough to ensure excellent stability while remaining suitable for applications requiring frequent relocation.

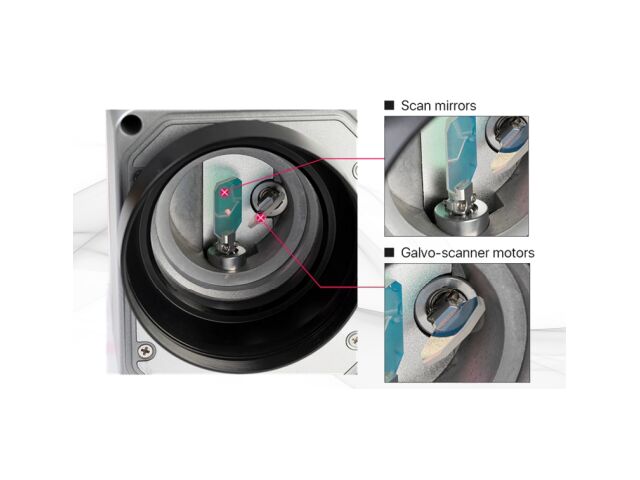

It integrates a laser source selected according to application requirements, a galvanometer scan head with autofocus, a dedicated control computer, French-language marking software, as well as protective guarding and integrated safety systems.

Options such as a rotary axis, a fume extraction system, or an XY cross table further enhance its versatility.

Thanks to its high-quality fiber laser, adjustable Z-axis, and automatic focusing system, the PORTMARK delivers precise, fast, and stable marking, making it ideal for on-site operations and production workstations that require a transportable and high-performance marking solution.
