Laser interferometer XD

This product is temporarily unavailable.
Think about consulting similar products.

“ XD LASER MEASUREMENT SOLUTION Even quicker measurement times The XD™ Laser Measurement System is the newest iteration on the famous 5/6D™ Laser Measurement System. Like the 5/6D™, it also has the ability to simultaneously measure all axis errors for rapid machine tool error assessment. Measurement is accomplished in 3 to 4 hours instead of days. The XD™ Laser provides fast, accurate measurement of machine positioning capability to allow complete machine assessment with 80% less downtime. Simultaneous measurement produces a true picture of all axis errors, which is not possible with single parameter systems with a single set-up for each axis being the secret to dramatic downtime reduction. The XD6™ is the only laser measurement system to provide linearity, X & Y straightness, pitch and yaw measurements and "roll" measurement around an axis automatically with in measurement Squareness evaluation, allows the complete measurement of all 21 error parameters of 3axis machines work area. Team that with our exclusive Volumetric Error Compensation package and users can dramatically reduce bad parts and prolong the known useful life of their machining centres. ”

Ask for a quote

Presentation

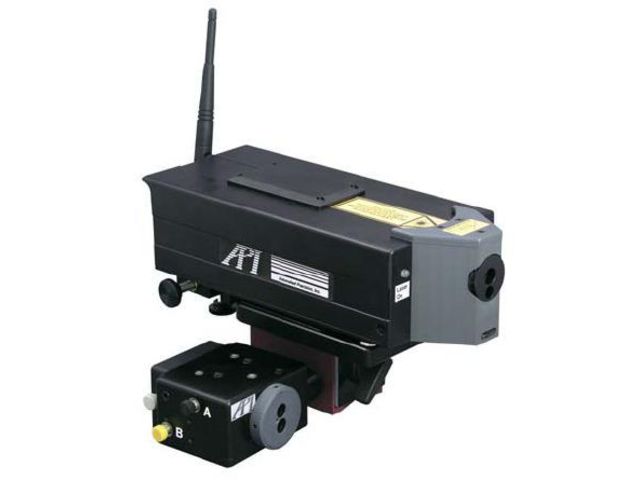

XD LASER

Precision Laser Measurement System

Increase Manufacturing Efficiency

The award-winning XD™ Laser from Automated Precision Inc. (API) is a multi-dimensional laser measurement system that simultaneously measures linear, angular, straightness and roll errors for rapid machine tool error assessment. The XD™ Laser’s fast, accurate measurement of machine positioning and axial capability makes complete machine assessment possible with up to 80% less downtime. For example, a complete measurement of a 1 meter volume machine is accomplished in 3 to 4 hours instead of 3 days.

What Makes The XD™ Laser Different?

The XD™ Laser is a fully wireless system with Ethernet connectivity that is available in 1, 3, 5, and 6 Degree of Freedom configurations. The 6 dimensional XD™ Laser is the only laser measurement system that provides simultaneous measurement of all axis errors from a single setup. The system also features the ability to evaluate velocity, acceleration, parallelism, squareness, and flatness.

More Features for More Measurement

Wireless or Ethernet connectivity
Control box integrated into laser head for portability
Weather station compensates in real time
Measurement of all error parameters from a single setup per axis
Compact laser head with base plate
Single optic squareness set-up
Humidity sensor available
Quick alignment fixtures
