Presentation

The Lasit Automated Pen Feeder marking system is designed for laser marking pens or other cylindrical parts (barrels) automatically. This high speed system provides hours of use unattended by placing a large volume of pens into a hopper and then having them come out the other end fully marked. The system orientates and then rotates each pen and logos, text can be marked in a linear fashion or wrapped around the circumference of the pen (or cylindrical part).

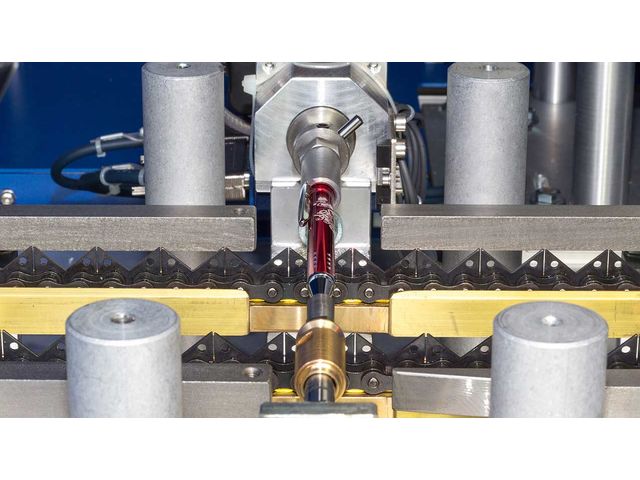

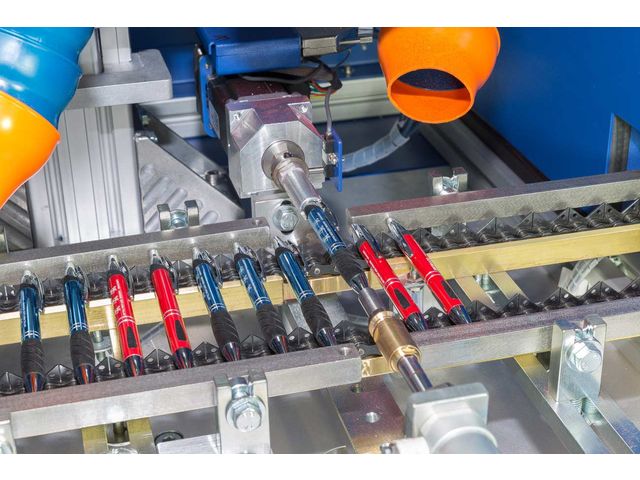

This revolutionary marking system reduces operator time to load and unload pens into a rotary device speeding up production. The first zone of the system aligns and orients the pen in the same direction. The pen travels along and is then rotated 360 degrees to wrap information around the circumference.

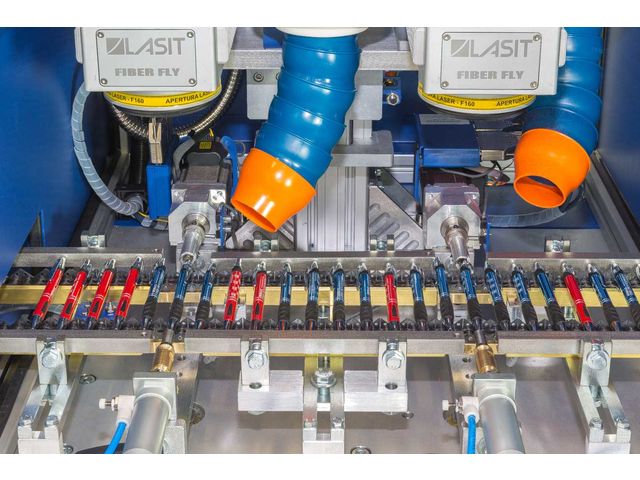

This system can be equipped with a one laser or two lasers within the same system for greater productivity. The programmable Z axis, operated by the FlyCAD marking software, provides for marking parts with various thicknesses. Marks can be longitudinal lines of text of continuous seamless logos 360° around the pen.

Technical features

Working position: Stand up Max weight on the plane: 70Kg Markable max height (ø 140mm): 150Kg Available marking areas: ø100, ø140 Vision system: Optional – both TTL and Reflex Type of engine: Up to 4 motors with encoder Type of door: Manual Exhaust fan and filter: Integrated into the base Pc and monitor: Integrated into the base and monitor holder DMX player: Optional
