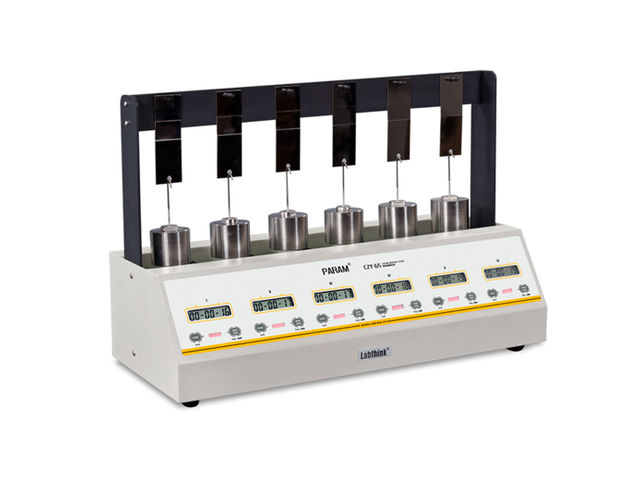

Lasting adhesive tester :Tape Adhesion Retention Testing Instrument

PARAMTM CZY-6S Lasting Adhesive Tack Tester is designed to measure the durable adhesion of pressure-sensitive adhesive tapes, adhesive bandages(plasters), adhesive labels and protective films and etc.

Features :

- Micro-computer control, LCD display.
- Film keyboard, PVC operation panel.
- Automatic timing and test result memorization Six-station design.

Principle :

Hang the panel(s) joint by adhesive tape(s) onto the test shelf vertically. Hang specified weight(s) on the lower end of the panel. After a certain period, measure the displacement of the specimen or record the time taken for the specimen to separate completely from the panel to express the specimen’s ability to remain adhesive.

Technical Indexes :

- Standard roller: 2,000g+50g
- Weight: 1000+10g (including the load panel)
- Test panel: 60 mm (L) x 40 mm (B) x 1.5 mm (D)
- Range of test time: - 0~100h (standard)
                                      - 0~10000h (optional)
- Number of work stations: 6 stations
- Dimensions: 600 mm (L) x 240 mm (B) x 400 mm (H)
- Power: AC 220V 50Hz
- Net weight: 20kg

Standards :

- ASTM D3654, GB 4851, JIS Z0237
