Lift up gate

Conveyor turnstile

Vote

“ Facilitate access around the conveyor line, improve working conditions. ”

Ask for a quote

Presentation

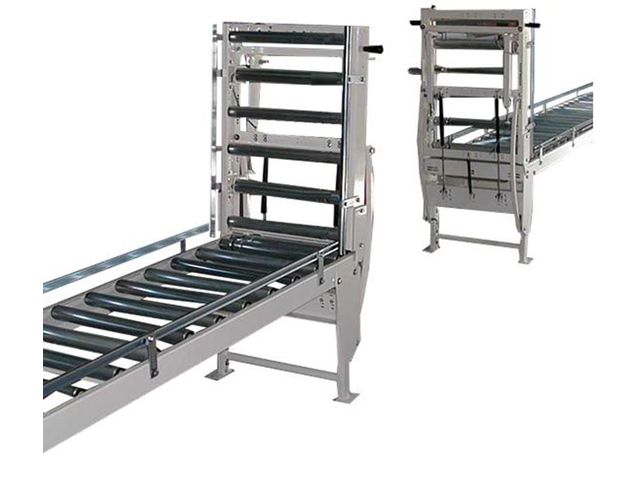

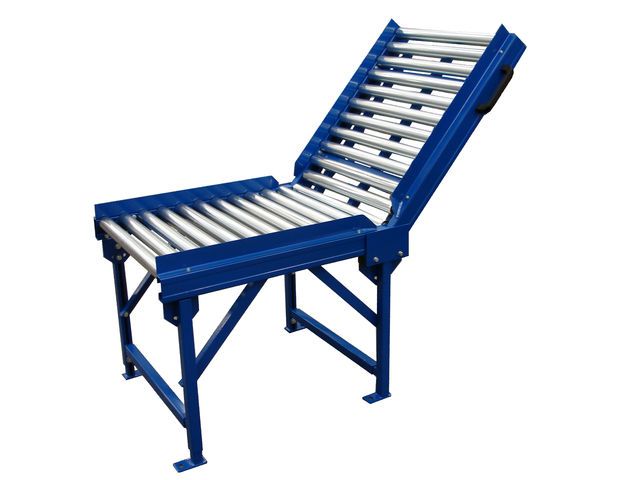

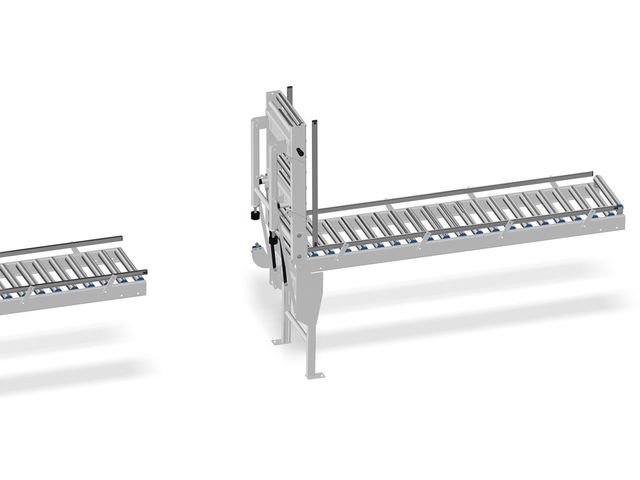

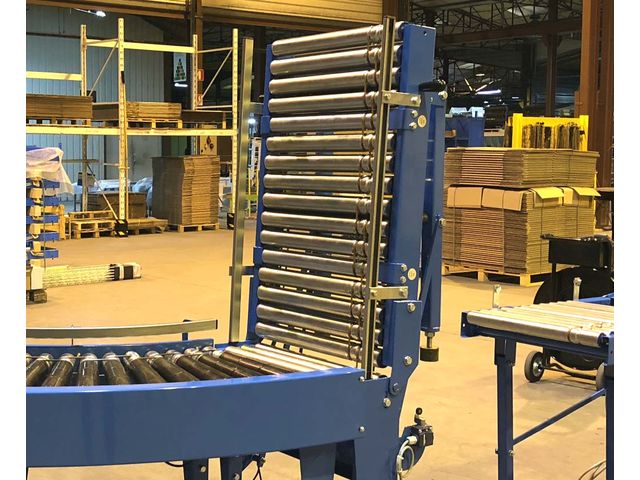

Lift up gate allows the opening of a passage in an industrial conveyor line. It is the removable extension of roller and belt conveyor.

You can choose between a free or power lift up gate.

It allows the opening for the supply of material or for the circulation of operators and machines. It can provide free access to a door or a transverse corridor when there are layout constraints.

The opening of lift up gate is done manually with a handle on the sides and without effort.

It frees up a space of 750 mm and if two lift up gate are placed next to each other, a space of 1 500 mm frees.

Technical features

Ø Rollers : 40, 48 and 50 Between axes : 50, 75, 100, 150 and 200 mm Width : 300 to 1 000 mm Charge maximum : 80 Kg/ml

Usage scope

Logistics E-commerce Entire industry Parcel Furniture industry
