Lifting-tube handling solutions | EASY Plus MANUT-LM

Lifting-tube handling solutions | EASY Plus

Industrial handling systems

Vote

Ask for a quote Receive Documentation Contact the supplier

EASY Plus - Lifting Device for assistance with manual handling of loads up to 150 kg.
Thanks to its standard extended and articulated control handle, Easy Plus allows effortless handling of height of heavy loads on the ground and at a height, while maintaining a permanent ergonomic posture.
The operators then become self-reliant when handling loads requiring several people, thus maximising the productivity and safety of workstations.

EASY Plus, the lifting-tube manipulator suitable for difficult loads on the ground or at a height, for optimal ergonomics.

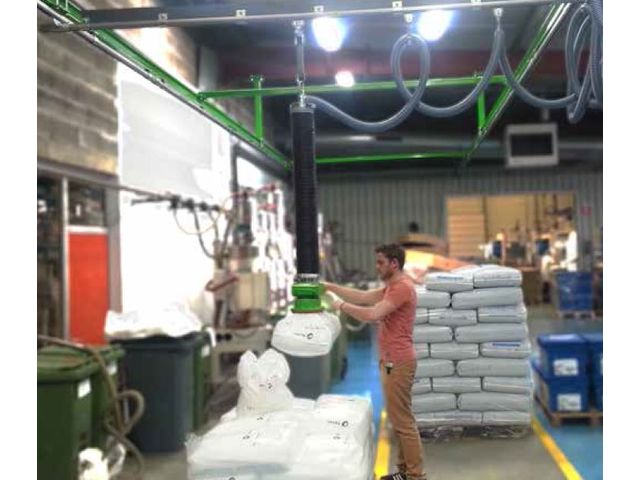

EASY Plus can lift loads of up to 150 kg: raising of bags, boxes, panels etc.

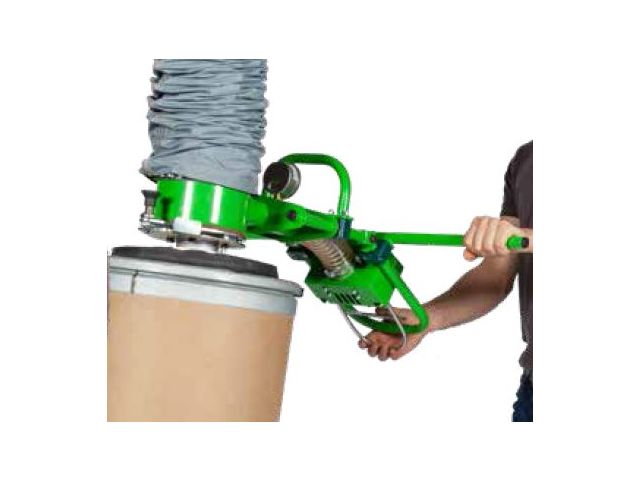

Equipped with an extended and articulated arm, this lifting-tube manipulator allows operators independence when lifting heavy loads, while ensuring safety, ergonomics and ease of use. In addition, palleting and de-palleting at a height becomes a simple and quick operation.

The lifting tube takes the weight for the operator, allowing him to lift and move the load without effort and with a minimum of movement. No more need to bend the back or stretch the arms during handling, thus providing long-term protection against any risk of MSD (musculoskeletal disorder), and avoiding professional sickness judgements.

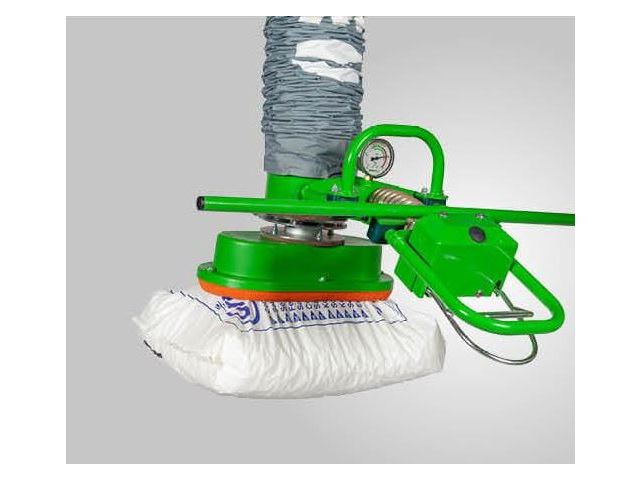

Just like Easy Fast, Easy Plus is the ideal solution for handling of bags, thanks to its suction-cup lifting system. The bags can be gripped on the ground without difficulty for the operator and palleted at a height.

Type of handle Control handle with trigger Weight of control handle 8.6 kg Weight felt 0.4 kg Dimensions of control handle 300 x 150 x 100 mm Compatible gripping tools Suckers, vacuum devices, forks, hooks, pincers etc Maximum removal height 2100 mm Type of motor Turbine motor suction unit Soundproof casing option Available Motor power 3 or 4 kW (depending on load) Electricity supply 230V tri-phase / 400V tri-phase
