Lifting-tube handling solutions | Master Fast MANUT-LM

Lifting-tube handling solutions | Master Fast

Industrial handling systems

Vote

Ask for a quote Receive Documentation Contact the supplier

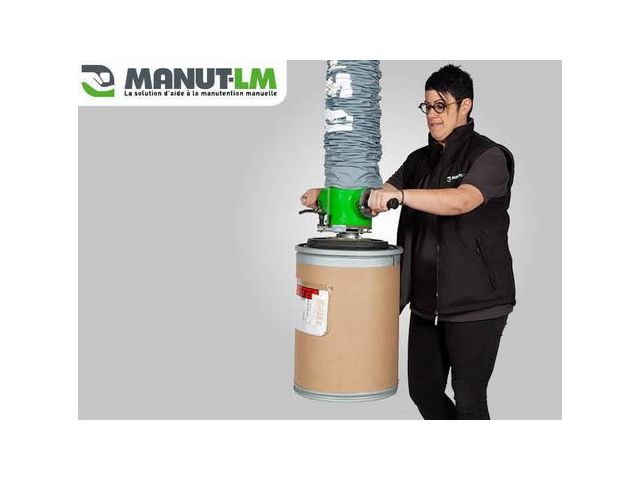

MASTER Fast - Lifting-tube handling solution for loads up to 300 kg

Master Fast allows comfortable and accurate double-handed handling thanks to its rotary handle. The operator can manage the speed of lifting and lowering the load, and the height at which it must be stabilized., with great accuracy.
The + Master: A system for removing loads in complete safety allows release of grip without risk of accident.

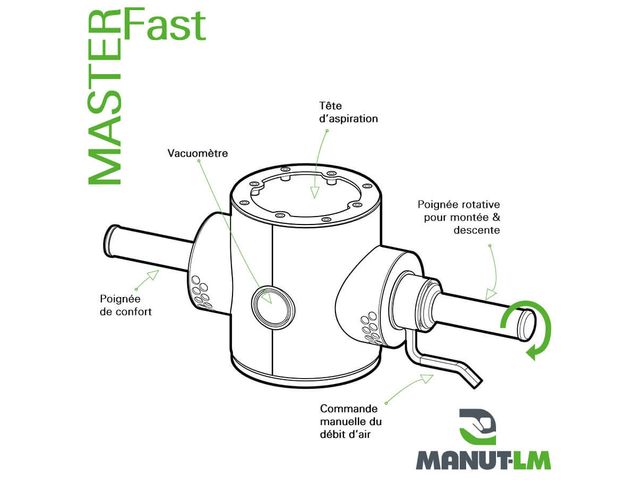

MASTER Fast is a control handle for a lifting-tube manipulator. It helps control the lifting of loads up to 250 kg accurately and ergonomically.
The special feature of MASTER Fast is its rotary handle,which provides great stability when managing the lifting of loads to be handled.

By measuring the rotation of the handle, the operator can simply speed or slow the ascent or descent and also stabilize the load at the desired height. Once the load is stabilized at a height, the control handle can be completely released and allowed to move by pushing the load horizontally, as if it were floating!

MASTER Fast therefore offers great flexibility of use and is ideal for production lines, especially during the emptying of containers to fill hoppers, for example. This suction-cup manipulator is also very efficient at lifting bags, thus resolving many different problems of handling.

MASTER Fast is equipped with a manual depression control, which allows loads to be released without effort, thus increasing both operator comfort and productivity.

Type of handle Rotary control handle Weight of control handle 5.1 kg Dimensions of control handle 300 x 150 x 100 mm Compatible gripping tools Suckers, forks, hooks, pincers etc Maximum removal height 1500 mm Type of motor Turbine motor suction unit Soundproof casing option Available Motor power 3 or 4 kW (depending on load) Compatible with ATEX 2.2 zones Yes Guarantee 1 Year
