Magnetostrictive displacement transducer MPE TWK-ELEKTRONIK GmbH

Magnetostrictive displacement transducer MPE

Magnetic position sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

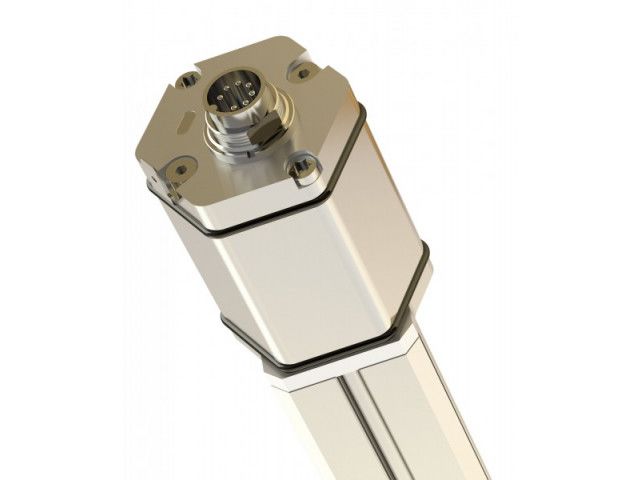

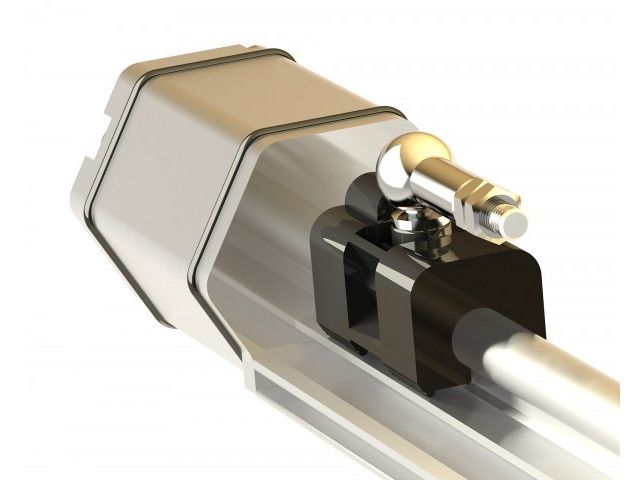

The displacement transducers operate according to the principle of run time measurement between two points of a magnetostrictive waveguide. One point is determined by a moveable position magnet, whose distance from the null point corresponds to the section to be measured. The run time of an emitted impulse is directly proportionate to this section. Conversion to a digital measuring signal takes place in the downstream electronics. The waveguide is housed in a pressure-resistant stainless steel tube or extruded profile. To the rear of this is a die-cast aluminium housing containing the electronics in SMD technology. Electrical connection is implemented via a circular connector. In the rod version, the position magnet is located in a ring, which is guided over the rod without contact. In the profile version, it is located either in a slider, which is linked to the moving part of the machine via a ball joint, or it moves as a liftable position magnet, without wear, over the profile.

Interface: SSI Measuring ranges available: Up to 200mm, Up to 1000mm, Up to 2500mm, Up to 3000mm, Up to 7600mm
Download the complete technical features
