Intelligent T-slot position sensor : MPS-064TSNU0

Magnetic position sensors

Vote

Ask for a quote

Presentation

MPS-T position sensors continuously detect the piston position of pneumatic actuators using a direct, non-contact method.

They can be mounted in T-slots without the need for additional accessories. The sensor settings can be adjusted during installation and during operation later on, using a teach pad or – depending on the variant – using IO-Link.

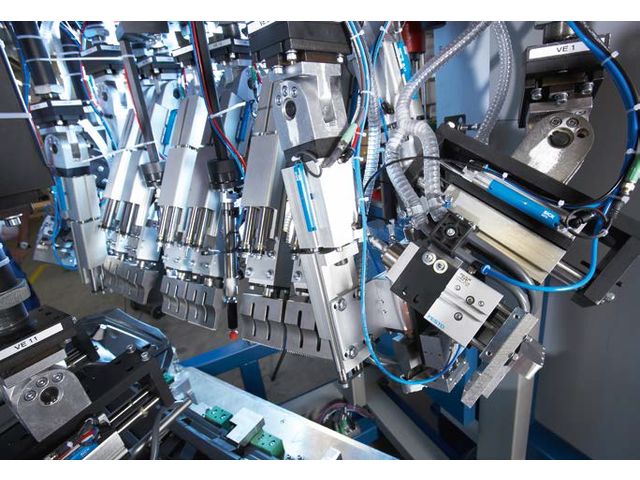

The sensors continuously supply data via analog outputs or IO-Link, enabling flexible machine concepts and making it possible to solve tasks in areas such as quality monitoring and process control in conjunction with pneumatic cylinders and drives.

This continuous transfer of position data upgrades the functionality of the pneumatic cylinders by making them more intelligent – and, as a result, more versatile.

At a glance

Position sensor for direct mounting in T-slots on pneumatic cylinders
Sensor variants with measuring ranges of 32 mm to 256 mm
Analog outputs (for current or voltage), switching output, and IO-Link
Mounting on other cylinder types (e.g., round body cylinders) is possible with adapters

Technical features

Housing length : 77 mm Enclosure rating : IP67 Supply voltage : 15 V DC ... 30 V DC Protection class : III Ambient operating temperature : –20 °C ... +70 °C Housing material : Plastic

Download the complete technical features
