Sensors for T-slot cylinder : RZT7-03ZUS-KW0 SICK

Sensors for T-slot cylinder : RZT7-03ZUS-KW0

Magnetic position sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

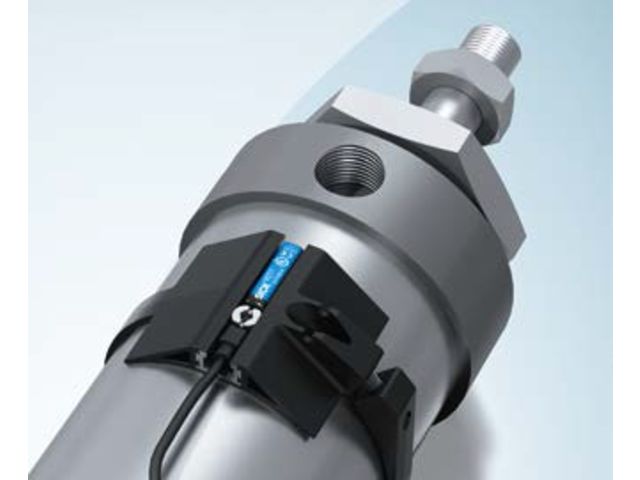

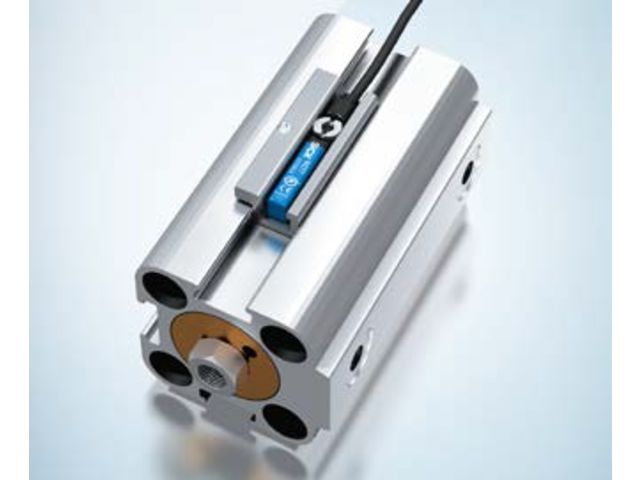

The SICK RZT7 magnetic cylinder sensor with reed contact reliably detects the piston position in pneumatic drives. The RZT7 can be mounted directly into all cylinders with standard T-slots. SICK also has an extensive range of adapters which enable the RZT7 to be used with other cylinder types.

The RZT7 is characterized by its simple mounting principle: Insert the sensor into the slot and rotate the fixing screw a quarter turn to fix it securely to the cylinder.

At a glance
  • Can be used in all standard cylinders, linear slides, and grippers using the T-slot and – with the help of adapters – in round rod, tie-rod, and profile cylinders, and cylinders with a dovetail groove
  • Drop-in mounting from above simplifies handling and assembly
  • Locking screw combines an Allen key and slotted screw
  • LED for indicating the output state (depending on type)
  • Enclosure rating: IP 67
  • Supply voltage up to 230 V

Housing length : 29.5 mm Enclosure rating : IP65, IP67 Supply voltage : 5 V AC/DC ... 30 V AC/DC Protection class : III Ambient operating temperature : –30 °C ... +70 °C
Download the complete technical features
