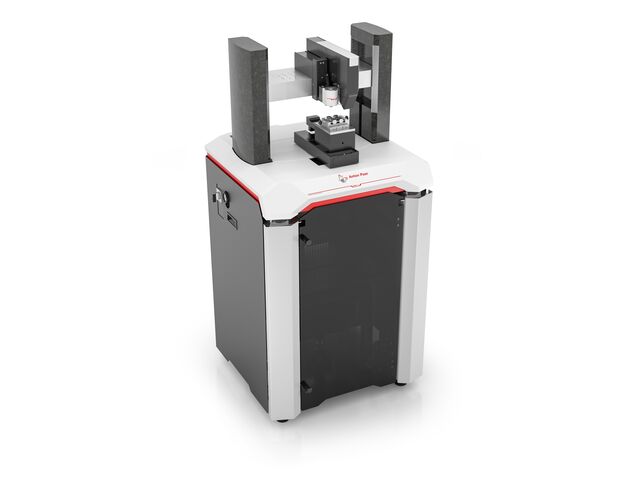

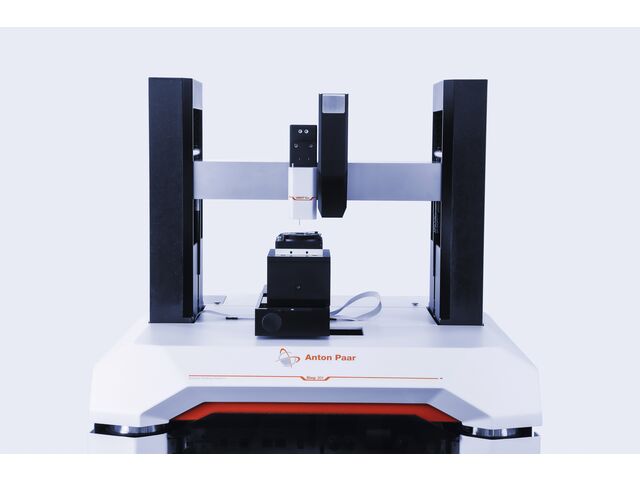

Step platforms are the basis for Anton Paar's mechanical surface measuring heads and are the most versatile on the market. With these platforms you can conduct up to four testing methods on a single platform : scratch, indentation, Vickers hardness, and basic tribology. Take advantage of the improved sample navigation features while retaining the high positioning accuracy (<1 µm) over a great length. Customized synthetic granite ensures enhanced vibration damping. Tailor-made glove box / vacuum / humidity chamber platforms are available on request.

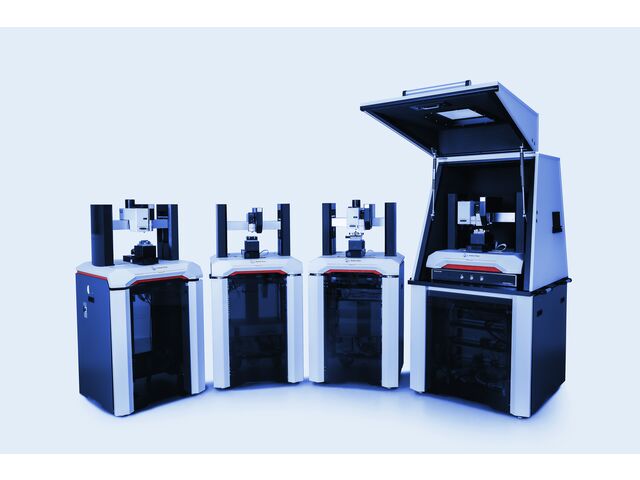

Step 101 :
-
One measuring head (MCT3) can be mounted
-
Motorized X (75 mm), Y (75 mm) and Z (30 mm) stages
-
Various microscope configuration choices
Step 301 :
-
One measuring head can be mounted
-
Motorized X (75 mm), Y (75 mm) and Z (30 mm) stages
-
Various microscope configuration choices
-
Anti-vibration table
Step 501 :
-
Up to three measuring head can be mounted
-
Motorized X (215 mm), Y (75 mm) and Z (30 mm) stages
-
Various microscope configuration choices
-
Anti-vibration table
Step 701 :
-
Up to three measuring heads can be mounted
-
Motorized X (215 mm), Y (75 mm) and Z (30 mm) stages
-
Various microscope configuration choices
-
Active anti-vibration table and acoustic enclosure
-
Optional atomic force microscope available
Plastic films
Coatings
Semiconductors
