SOCLEMA

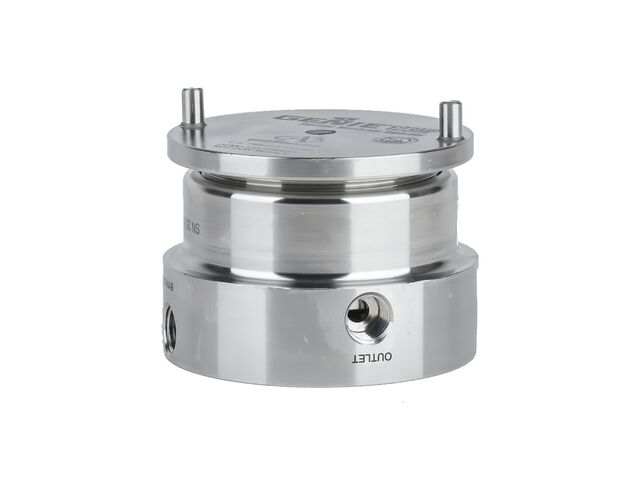

Membrane separator for gas sample | GENIE 123

Membrane separator for gas sample | GENIE 123 - SOCLEMA

Membrane separator for gas sample | GENIE 123 - Gas analysis

Membrane separator for gas sample | GENIE 123 - produit présenté par SOCLEMA

Membrane separator for gas sample | GENIE 123

Gas analysis

“ - Helps preserve sample integrity - Superior analyzer protection - Quick and easy to install and maintain - Quick and easy membrane inspection - Economical ”

Ask for a quote

Presentation

The Supreme 100 Series™ remove 100% of entrained liquid and particulate in gas samples, which allow only gas sample to flow to analyzers. This action protects analyzers and other sampling components against liquid damage.

The Genie® Supreme Series™ 100 models can accommodate a wide range of applications just as the original Genie® Series 100 Membrane Separators™, yet they offer an improved housing design for easy maintenance and the innovative Liquid Block Technology™ that prevents liquid from being forced across the membrane should sample line pressure conditions become upset. Genie® Supreme Series Membrane Separators™ are safe and easy to install and maintain, especially in densely populated cabinets.

The Model 123 is ideal for applications requiring higher flow rates or larger quantities of liquid than the Genie® Supreme Model 120 can withstand. It offers a 2” diameter membrane, the same membrane cross sectional area as the original Genie® Model 130 or Genie® Model 130M, and is ideal for removing unintermitted liquid flow from gas samples. It is also perfect for protecting components such as on-line analyzers, gas chromatographs, or mass spectrometers.

Technical features

Genie® Membrane Technology™ Liquid Block™ in option Low internal volume Straight throught bypass Built-in membrane retention Threaded housing cover All connection ports on the housing Back mounting

Download the complete technical features
