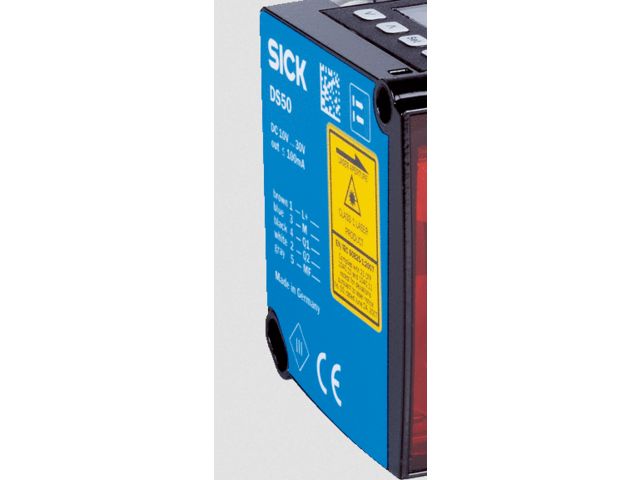

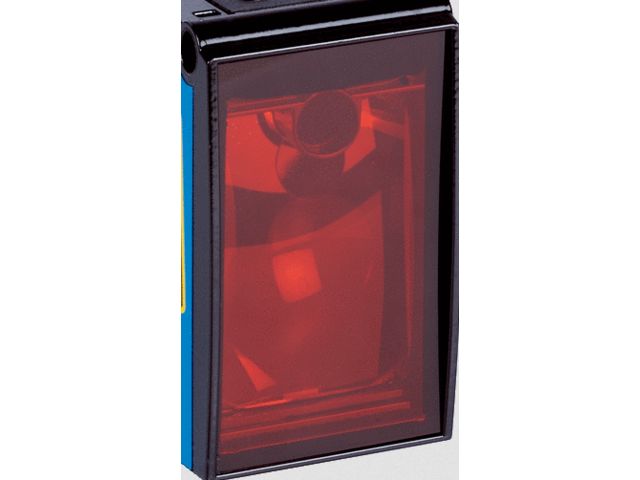

Mid range distance sensors Dx50

Distance sensors

Vote

Ask for a quote

Presentation

The Dx50 is a common distance sensor platform, offering multiple performance levels. With measurement ranges of up to 10 m or 20 m on objects or even up to 50 m when measuring on reflector, the Dx50 is suitable for many different applications.

Based on a switching, analog or serial interface being available the Dx50 can easily be integrated in any application environment. Also the intuitive operating concept and a visible red laser allow a fast installation of the sensors.

Thanks to the innovative HDDM technology the Dx50 provides excellent reliability, immunity to ambient light and precision when being in use. Offering an extremely good price/performance ratio the Dx50 is the right solution in many cases.

At a glance

HDDM technology offers best reliability, immunity to ambient light and price/performance ratio
Measurement ranges of 10 m or 20 m directly onto the object or even 50 m on reflector
Different performance levels depending on product and laser class chosen
Different interfaces: switching, analog or serial interface

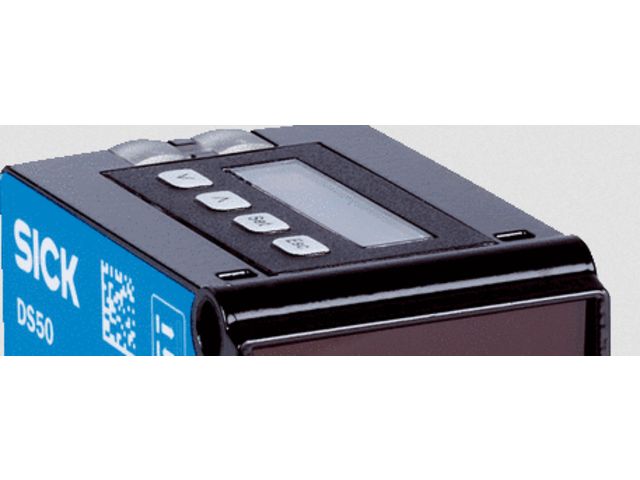

Display with intuitive and consistent operating concept
Robust die-cast zinc metal housing
Operating temperature from –30 °C to +65 °C

Technical features

Wide measurement ranges up to 10, 20 or 50 m in combination with different interfaces allow an easy and fast integration in any production environment Highly reliable and precise measurement helps to increase process quality and stability High measurement or switching frequencies enable a fast material flow Dx50 product family is based on a common platform, offering multiple performance levels, making it easy to accommodate future changes Intuitive setup via display or remote teach reduces installation time and costs Temperature range from –30 °C to +65 °C allows for outdoor use without additional cooling or heating Up to 40 klx ambient light immunity – allows for use in optically challenging environments
