Miniaturized fast steering mirrors for precise laser beam steering | FSM3000

“ Outstanding combination of dynamism & tilt angle Compact design, large mirror (Ø 20 mm) Robust & stable in aerospace, defense & industry ”

Ask for a quote

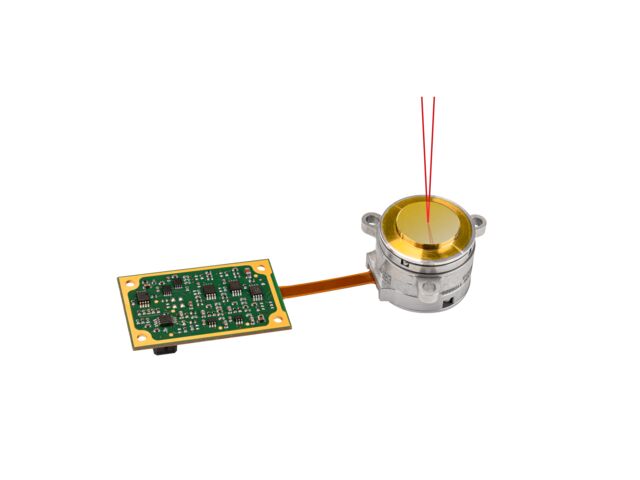

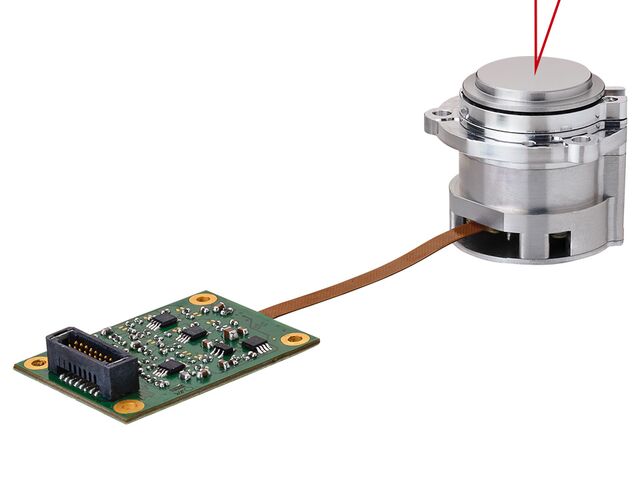

Fast Steering Mirrors (FSM) from Micro-Epsilon are miniaturized tilting mirrors that are used for precisely deflecting light or laser beams. The FSM3000 models combine superior precision with maximum dynamism. They are easy to integrate and very robust, which is why they are used, among other things, for satellite communication in space. A powerful voice-coil actuator and high-resolution embedded coil eddy current sensors allow for ultra-precise movements and a wide tilt angle. Thanks to the excellent mirror quality, the FSM meets the strictest optical standards. Series-optimized for high quantities – ideal for applications in industry, optics and aerospace & defense.

Discover the new benchmark for dynamic beam steering now!

Technical features

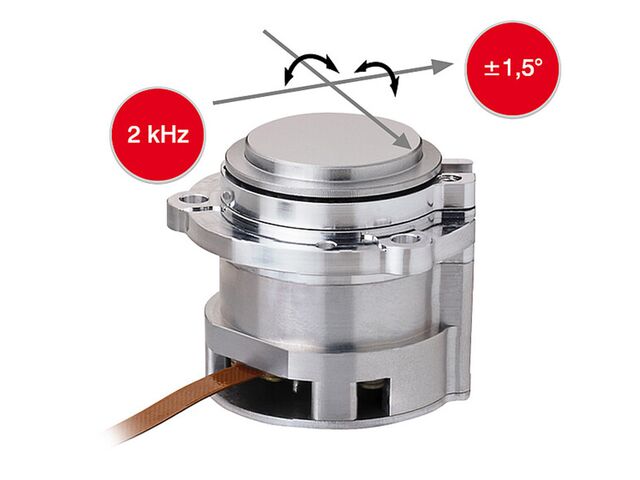

Large tilt angle of ±1.5° High dynamism with outstanding control behavior up to 1.5 kHz Large precision mirror (Ø 20 mm) with high reflectivity for lower optical losses High-resolution position measurement < 0.3 µrad Extremely compact and robust thanks to voice coil and patented sensor technology Suits almost all environments: aerospace & defense, optics & industry Proven performance in series use in satellite communication

Download the complete technical features
