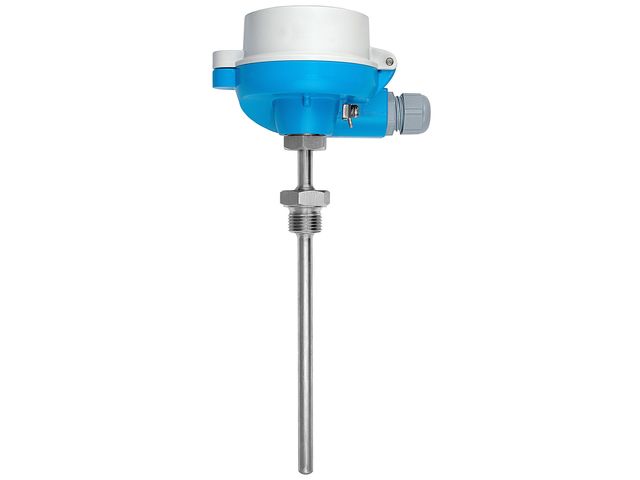

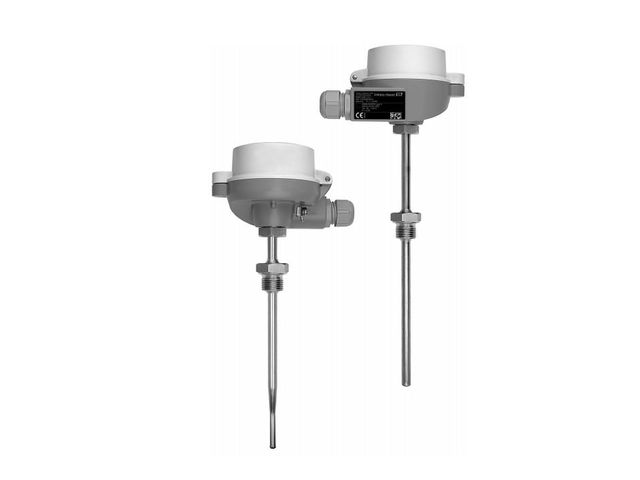

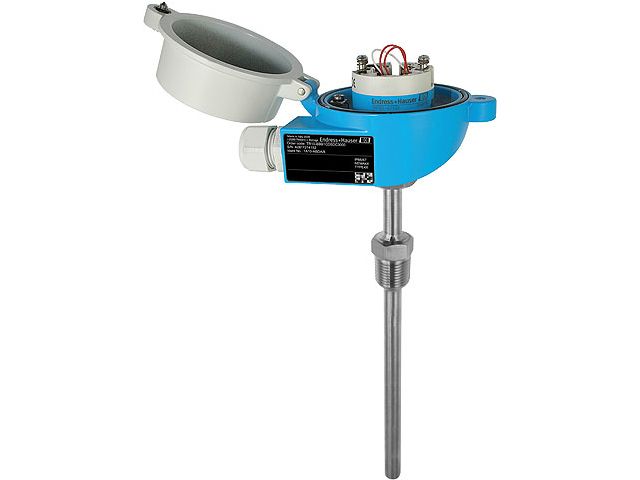

Modular RTD thermometer | Omnigrad M TR10

Temperature probe

Vote

Ask for a quote

Presentation

Comprehensive and common temperature measurement technology for almost all branches of industry

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.

- High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

- High degree of insert compatibility and design as per DIN 43772

- Extension neck to protect the head transmitter from overheating

- Fast response time with reduced/tapered tip form

- Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), non-sparking (Ex nA)

- Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™

Technical features

Measuring Principle: Resistance Temperature Detector Measuring range: -200 to +600 °C (-328 to 1112 °F) Pressure range up to 75 bar (1088 psi) Degree of protection: up to IP68 Vibration-resistant sensor elements up to 60g

Download the complete technical features

Usage scope

Universal range of application

Opinion on the product

Drop your rating on Modular RTD thermometer | Omnigrad M TR10

Your answer to the rating from -

Latest requests

12/10/2022

Resistance temperature transducer Type TR 10, 1xPT100 with universal transducer TMT-182, output 4-20 mA/HART, immersion diameter: 12mm, immersion length L = 80mm
