NC Surface Grinder - HFS 31125 NC

Flat grinding machine

Vote

“ High efficiency and unsurpassed precision combined with an intuitive control ”

Ask for a quote

Presentation

• Heavy machine frame in a rigid design ensures torsion-proof operation and optimum absorption of peak loads during table direction reversals.
• Large table offers space for workpiece sizes up to 1250 x 320 x 400 mm (LxWxH).
• Preloaded ball screws on Y and Z axis ensure high precision during grinding operations.
• Machine features modern servo-drives, low vibration, and precise control.
• Automatic dressing reduces down-times and increases accuracy.
• Servo-drives allow dynamic feed adjustments and rpm control resulting in drastically improved surface quality.
• Automatic shut-down of electromagnetic clamping plate upon power outages.

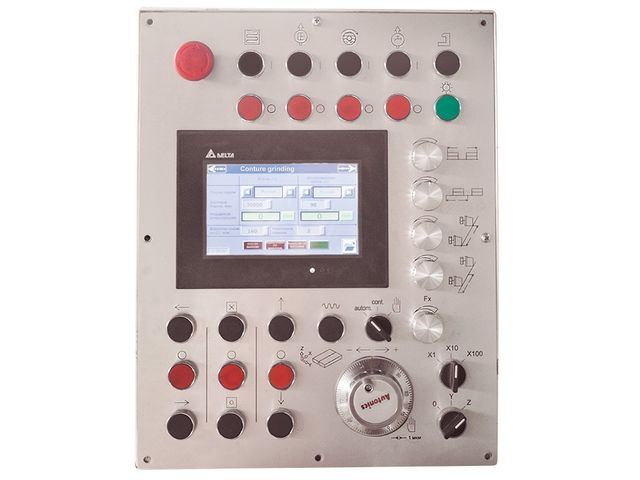

• Machine setup can be accomplished via an electronic hand-wheel, which is directly coupled with the X- and Y-axis. drives, reducing tooling time to a minimum.
• Work table feed speeds are variable and can be selected quickly.
• 11 kW main motor provides ample power reserves for larger feeds.

Standard Equipment : Numeric control, electromagnetic clamping plate 1250x320 mm, grinding wheel, grinding wheel flange, automatic diamond dresser, dress equipment, balancing station, balancing mandrel, trueing tool, work lamp, partial enclosure, operating tools, operator manual.

Technical features

Grinding area (max.) : 1.250x320 mm Workpiece weight (max.) : 600 kg Spindle axis-to-table surface distance : 625 mm Table dimensions : 1.250x320 mm Scale ring division Y-axis : 0,001 - 0,1 mm Scale ring division Z-axis : 0 - 5 mm Feed per hand-wheel rotation Y-axis : 0,001 mm Feed per hand-wheel rotation Z-axis : 0,02 mm Travel X-axis : 1.470 mm Travel Y-axis : 415 mm
