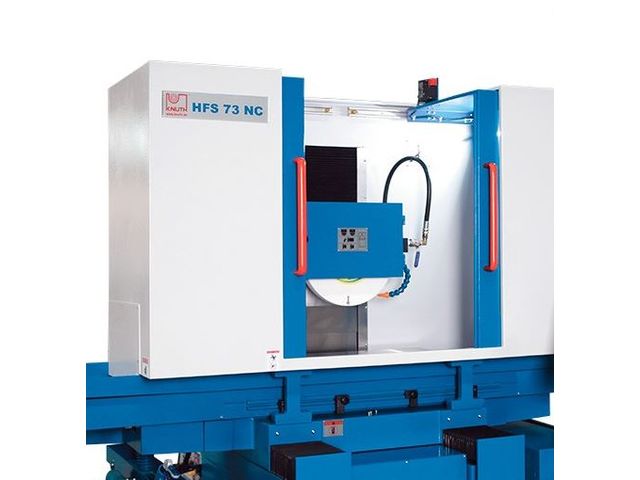

“ Automatic and semi-automatic grinding with dressing cycle ”
Ask for a quoteReceive DocumentationContact the supplier
• Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy and minimal heat. accumulation ensure optimum machining results.
• Dual guides for linear table motion.
• Spindle head and Z-axis move on precision linear guides with preloaded ball screws.
• Servo drives on Y and Z axis and hydraulic linear table movement can be adjusted via an infinitely variable electronic. proportional valve for precise and consistent feed.

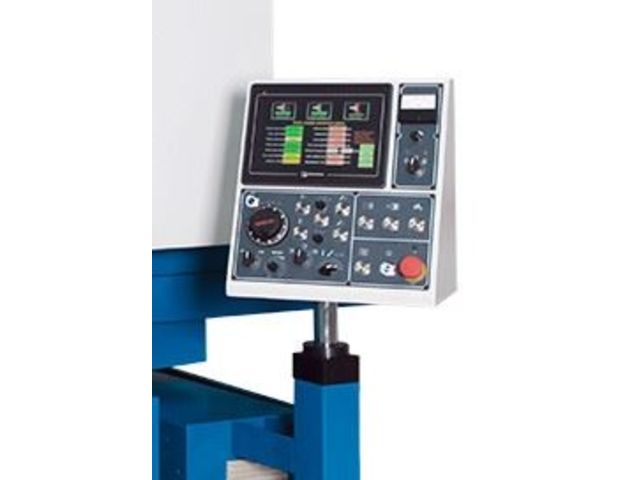

• 3-step electronic hand-wheel allows for precise positioning of the Y and Z axis.
• The heavy-duty, rigid grinding spindle head features maintenance-free preloaded high-precision angular ball bearings.
• External hydraulic unit and large oil cooler ensures thermal stability.
• Automatic central lubrication system.

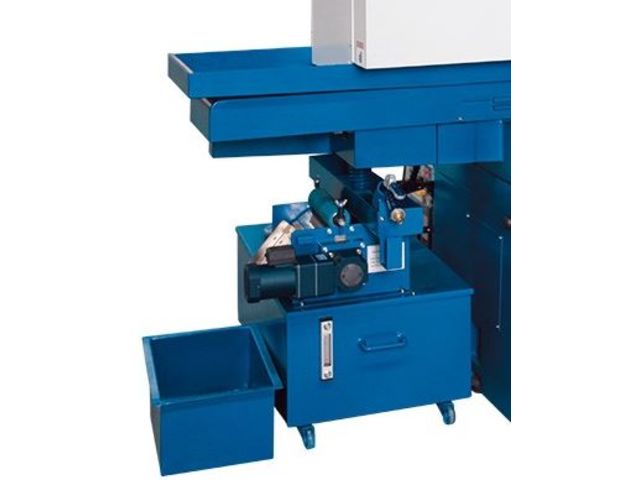

Standard equipment : magnetic clamping plate, coolant system with magnetic separator, central lubrication, hydraulic oil cooler, grinding wheel flange, grinding wheel, diamond dresser, balancing station, setup feet, Werkzeugbox, operator manual
Grinding area (max.) : 720x300 mmWorkpiece weights incl. magnetic clamping plate (max.) : 400 kgSpindle axis-to-table surface distance : 640 mmDimensions Magnetic clamping plate : 700x300 mmT-slots, width : 14 mmNumber of T-slots : 1 Pieces 0,001 / 0,005 / 0,01 mm Division (electronic hand-wheel) Z axis : 0,01 / 0,05 / 0,1 mm Travel X-axis : 800 mmTravel Z-axis : 330 mmSpindle speed : 500 - 2.300 rpm
