New instrument CO2 and O2 Meter: CboxQC

Gas analysis

“ Highly accurate and fully protected - CO2 measurement based on the patented Multiple Volume Expansion method guarantees repeatability standard deviations of up to 0.005 vol. or 0.01 g/L - The new high-resolution optochemical O2 sensor is accurate and achieves a repeatability standard deviation of 2 ppb - No influence of other dissolved gases such as air or nitrogen - Fully protected from harsh environments thanks to the robust, IP67 leakproof design - Small, compact, lightweight design, for super flexibility CO2 and O2 results in 90 sec, 10 at-line operation - Low sample volume of around 100 mL provides reliable CO2 and O2 results, even out of very small packages in the lab - PFD filling device transfers samples from the package into the measuring chamber without any loss of CO2 - CO2 and O2 results after only 90 sec - Intuitive user interface with clearly arranged navigation of the menu - Clear sample identification for full traceability of 500 measurement results - CO2 measurement based on the patented Multiple Volume Expansion method - Integrated rechargeable battery provides up to 10 hours at-line operation Built-in support for sophisticated self-diagnosis and error detection - Data Logger function enables continuous CO2 and O2 measurements from the line or tank - FillingCheck automatically detects filling errors and generates a warning message - SystemCheck guides the operator through recommended periodic checks Fast and wireless - Bluetooth interface for wireless printing - USB interface for data transfer to a PC - RFID interface for changing measurement settings quickly by reading RFID tags ”

Ask for a quote

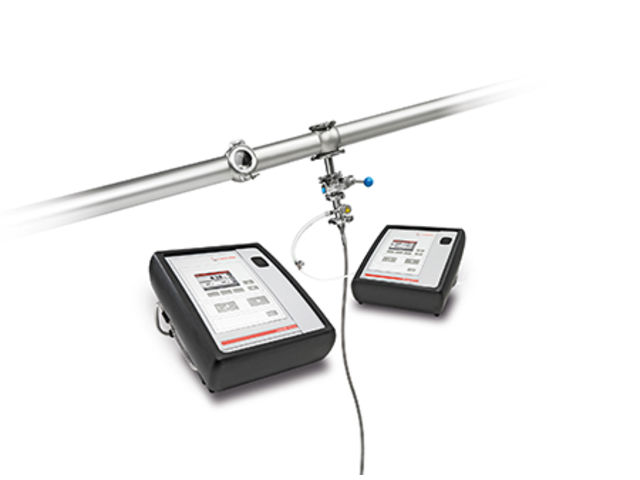

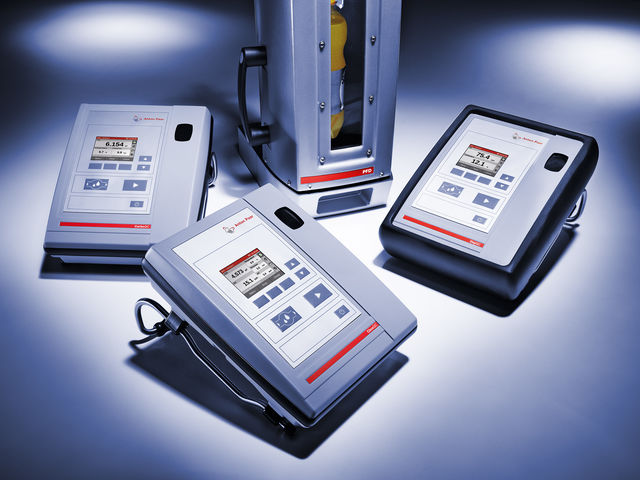

CboxQC and CboxQC At-line are combined CO2 and O2 meters allowing reliable quality control for finished packages. They are designed for direct measurements from process lines, tanks, kegs and casks during production and bottling and guarantee fast, accurate, and reliable determination of dissolved CO2 and O2 in beverages. When combined with Anton Paar's filling devices, they permit samples to be taken directly from the package into the measuring chamber of CboxQC / CboxQC At-line - with no loss of dissolved CO2 during the sample transfer.

CboxQC At-line :

For measuring dissolved CO2 and O2 in the production environment
Sampling directly from process lines, tanks, kegs and casks

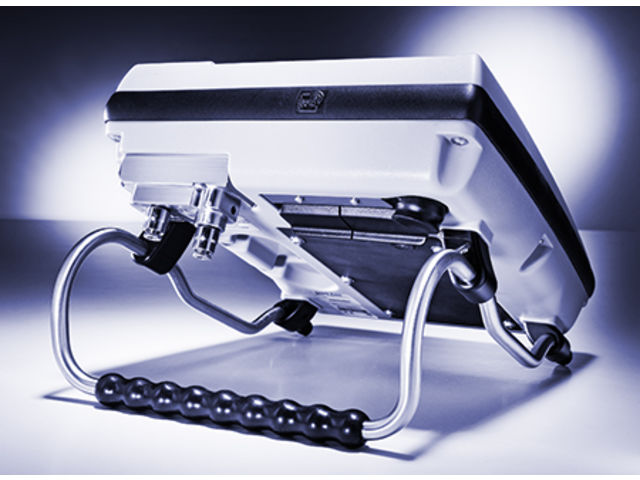

Protection class IP67 and rubber housing

CboxQC standard :

For measuring dissolved CO2 and O2 in the laboratory
Reliable QC for finished packages as well as measurements in the lab
FillingCheck feature for automatic detection of filling errors

Technical features

portable measurements Carbodoser CO2 Dissolved oxygen

Download the complete technical features

Usage scope

Beverage
