Analyseur de gaz automatisé : Oxylos O2_Anéolia _2

O2 gas analysis; micro-leak measurement system; packaging sealing resistance : Oxylos Leak / O2 Anéolia

O2 gas analysis; micro-leak measurement system; packaging sealing resistance : Oxylos Leak / O2

Gas analysis

Vote

Ask for a quote

Presentation

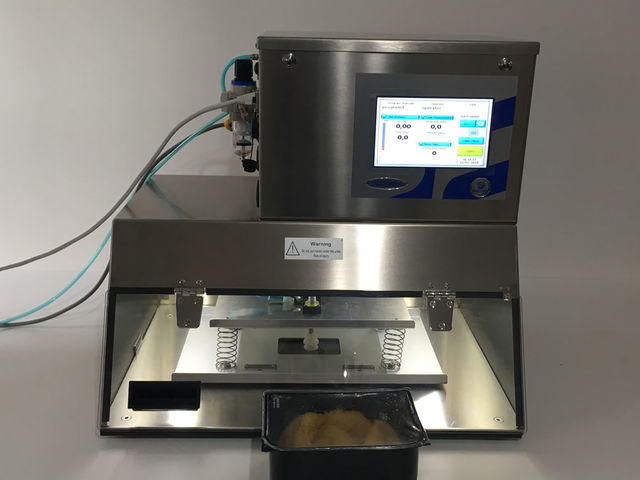

The OXYLOS LEAK / O2 allows you to measure the rate of O2 and the airtightness across all types of containers and packaging, with protective atmosphere, and without having to use any consumables (no need to use needles or septums). Automated and safe, the OXYLOS can be adapted to your production constraints, providing you with sampling tools and customised positioning. The high-end analyser from the ABISS brand provides you with solutions for packaging when space above the contents is limited. Able to be synchronised to the packaging line, the OXYLOS becomes autonomous and does not require an operator in order to carry out measurements. This analyser is ideal for production.

THE + PRODUCTS

3 en 1: MAP + micro Leak + burst
Standards :
- DIN 55508-1 : Flow measurement under constant pressure
- ASTM F1140 – Seal resistance
- ASTM F2054 – Burst testing
No consumable
Fully hand safe
Laser positionning tool for sample
Can be synchronised to conveyors
Effective hole size calculation down to 5 μm
Solutions where available space above the product is limited
Fully traceable via an internal spreadsheet
The needles are cleaned automatically
Remote maintenance 7 days a week, with remote connection available

Technical features

Custom placement tools yes ingress protection of enclosure IP 65 Measurement device Bench-mounted Enclosure Acier inox Weight : 28 kg/Width : 560 mm/Height : 495 mm/Depth : 473 mm Power : 100-240VAC -50/60Hz - 63W Feed pressure : 4 to 8 Bar (dry and oil free filtred to 20 µm) filtered at 20μm Inlet pneumatic connection diameter 4 x 6 mm tube connection Memory capacity : 4 to 32go Display : Color touchscreen 7’’
