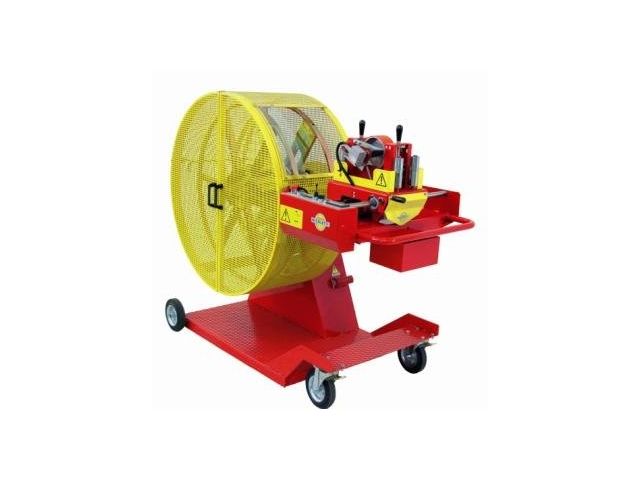

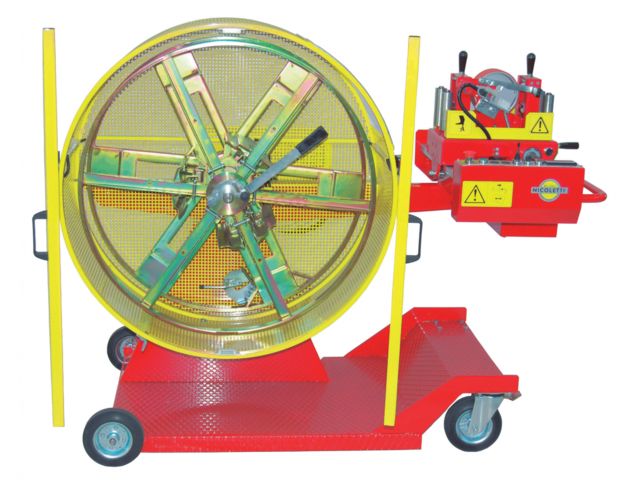

OEVE

High capacity coiler
Mobile machine (2 fixed wheels + 2 pivoting wheel-brakes).

Gavette:
- choice of exterior Ø 800 or 1,000 mm
- interior Ø adjustable from 320 to 600 mm
- adjustable width of 125 or 200 mm

Measuring device for a cable of max Ø of 60 mm on crosswinding bench
Optional, single or double programming electronic counter (slowing down then stopping)
Precision on round coated cables: +/- 1.5%

- Larger gavette available on demand
- 1.1 kW gear motor
- Variable speed 0-70 rpm by means of a frequency converter
- 220V mono-phase

Dimensions: l 1900 x W 1100 x H 1500 mm
Weight 233 kg

Optional:

- measuring device for a cable of max Ø 100 mm
- approved measuring device (precision on round coated cables +/- 0.4%)
- electro-hydraulic crimping pliers TC-60 or TC-100
- SP-08 automatic crosswinding
- for mobile energy supply, vertical pin, self-retracting winding reel (see pages 27 to 33), rotary collector

There is also a PLC automated versionetracting winding reel (see pages 27 to 33), rotary collector

There is also a PLC automated version
