Oval gear meter for liquids

Turbine fitted flow meter

Vote

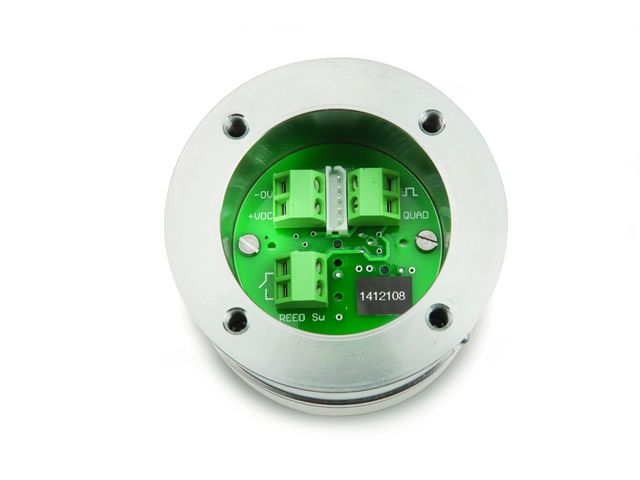

“ Features / Benefits High accuracy and repeatability, direct volumetric reading Measures high and low viscosity liquids No requirement for flow conditioning (straight pipe runs) Stainless Steel rotors (Optional PPS rotor for OM008 meter only) Quadrature pulse output option and bi-directional flow Optional Exd I/IIB approval (ATEX, IECEx) Only two moving parts ”

Ask for a quote

Presentation

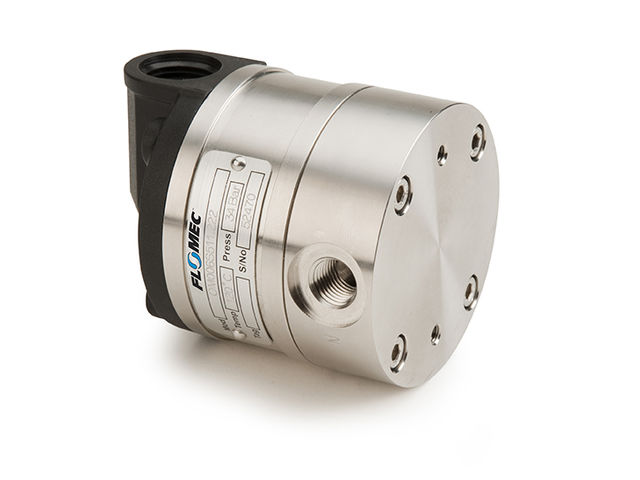

The FLOMEC® OM Oval Gear Meters have an increased flow range and offer the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability.

APPLICATIONS :
• Oils
• Fuel
• Diesel
• Truck Metering
• Chemical Additive Injection
• Batching
• Molasses
• Clean Fluids
• Bunker C Fuel Oil
• Oil-Based Paints
• Industrial Fluids
• Chemical Feed Lines

CE approval

Technical features

Accuracy : +/- 1 % of the reading Repeatability : +/-0.3% of reasing from 1/8 From 10 to 400 barG depending on models Temperature: -40 to +150°C Ranges : from 1 LPH to 1500 LPM ATEX approval on demand IP66/67 Turndown ratio : 100:1 Electrical consumption : 20 mA to 200 mA depending on output type

Download the complete technical features
