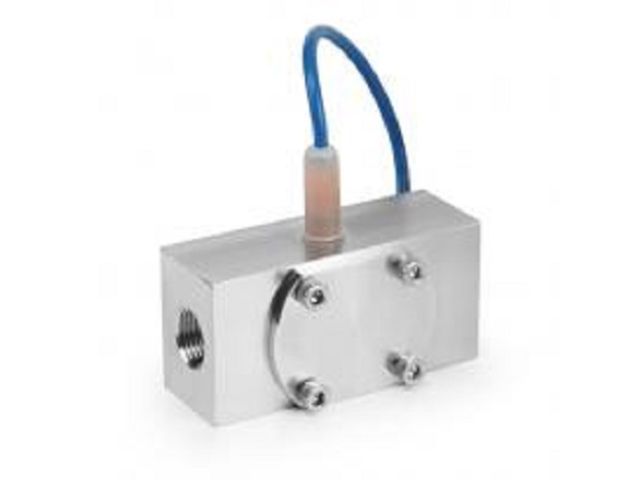

SPX pelton turbine flow meter from SEAMETRICS
Low flow, chemical resistant flow meter in sizes 3/8" to 1"
Versatile square-wave signal connects to PLC's, counters, and Seametrics controls
Only one moving part
Sight flow indication
Replaceable non-wetted solid-state pickup
Wide flow range
Low flow, chemical resistant flow meter in sizes 3/8" to 1"
Versatile square-wave signal connects to PLC's, counters, and Seametrics controls
Only one moving part
Sight flow indication
Replaceable non-wetted solid-state pickup
Wide flow range
FEATURES
• Accurate at low flows
• Simple and durable
• Compatible with a variety of chemicals
• Visual flow monitoring (SPX Only)

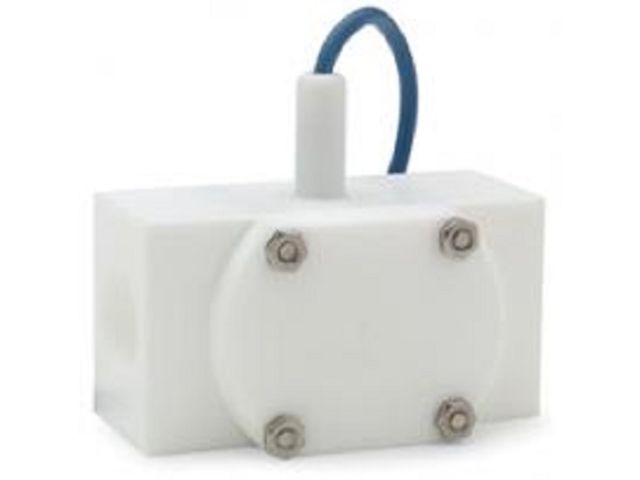

These versatile impeller flowmeters are availalble in 3/8", 1/2”, 3/4”, and 1" nominal pipe sizes with female NPT threads. They employ jewel bearings to allow for very low minimum flow rates and superior life. With a body material of polypropylene, the SPX is an economical choice for metering water or low corrosion fluids. The lens cover is available in a choice of materials: acrylic for visual flow indication of low-corrosion fluids; polypropylene when more corrosion resistance is needed. The standard rotor assembly is Kynar with tungsten carbide shaft. The O-ring is EPDM. The SPT offers greater chemical resistance with a Teflon body and cover, Teflon-coated Viton O-ring, and standard Kynar/ ceramic rotor assembly. The pulse output of these meters is compatible with many different types of controls, including a full range of Seametrics rate displays and controls. The Seametrics FT420 provides flow rate and total flow indication, with 4-20 mA output capability. The FT415 is a battery-operated rate & total display. For metering pump pacing or interfacing with lowspeed counters, the PD10 pulse divider is recommended. The AO55 may be used for blind 4-20mA transmission.
Accuracy +/- 1% full scaleFlow rates from 0.27 to 150 lpmPulse output hall effetPower 5-24 Vdc, 2 mA minMax pressure 10 barMax temperature 70°CSensor cable 18 fett standard (Maximum cable run 2000 ft.)Connection ports : 3/8”, 1/2”, 3/4”, 1”, Female NPT thread
