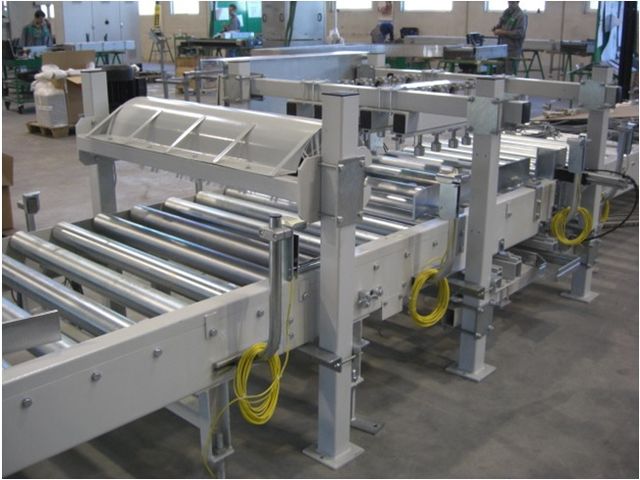

A design guaranteeing accurate transport of high-rate heavy loads
Features
-
Painted or galvanised steel modular construction
-
Easily disassembled drive and return shafts
-
Polyamide bearings lubricated for life or featuring a grease nipple
-
Steel pinions
-

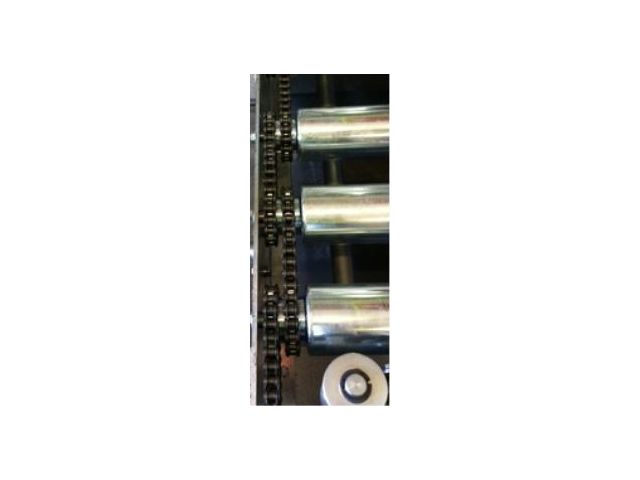

Equipped with chains or rollers
Motorisation
Standard: Asynchronous SEW SA47/57/67 drive hollow shaft ≤0,55kW IE1
-
Standard Efficiency, IE2
-
High Efficiency ≥0,75kW IE2
-
High Efficiency, IE3
-
Premium Efficiency
Option: Synchronous SEW MovigearMGFA drive; 200Nm or 400Nm hollow shaft, IE4
Option: Synchronous Danfoss OGD drive; 1000Nm hollow shaft, IE4
Modules
-

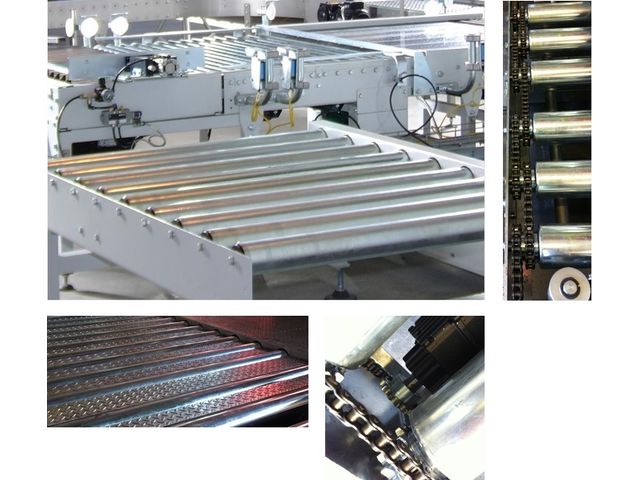

Straight section conveyors with galvanised steel ø89mm, 3mm-wide rollers featuring 182,5mm pitches (pitch = 127mm for 1/2 pallets)2 palettes)
-
Straight section conveyors with 12,7mm steel chainsn acier
-
Double, triple or quadruple
-
Roller and chain angular gear conveyorst chaînes
-
Motorised or pneumatic elevator
-
90°, 180° & 360° roller or chain turntable conveyorsà chaînes
-
Rotation drive via toothed belt
-
Roller, chain, angular gear or turntable conveyor rail shuttles
-
Empty pallet storage facilities (up to 20 pallets)
-
Insert storage facilities
-
Pallet screeds, pneumatic or motorised elevator
-
Automatic pallet check (presence of soles, friezes, blocks…)
-
Pallet brushing module
-
Elevator tables (motorised or pneumatic movement)
-
1/2 pallet dividers / groupers
Accessories / Equipments
-
Solid, fixed or adjustable side guides
-
Plastic or steel chain guides according to application
-
Standard or heavy execution trolley stops
-
Standard or heavy execution pallet stops
