Phase rotation tester | CA 6612

Ask for a quote

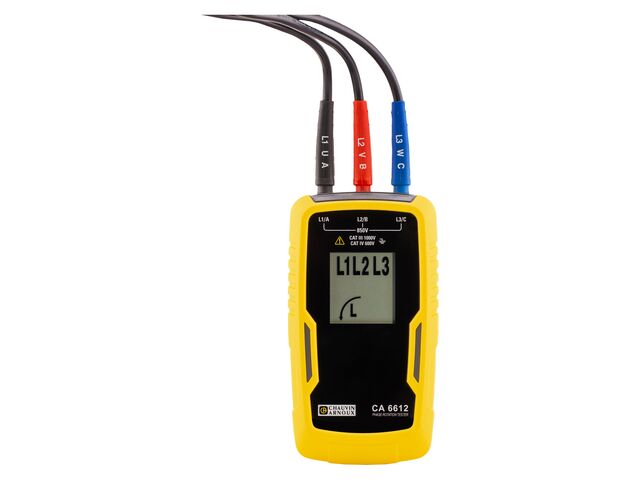

The CA 6612 is an instrument designed to verify phase order in three-phase electrical installations. It allows inspection and maintenance technicians to quickly determine phase sequence during installation or diagnostic operations.

Designed for easy use in the field, the device features color-coded terminals and cables, facilitating connection and reducing the risk of errors during measurements.

The CA 6612 also detects possible phase breaks, ensuring reliable verification of the proper functioning of the electrical installation before equipment is put into service.

Checks are performed immediately after the cables are connected, and the results are clearly indicated by LEDs, providing a quick and intuitive readout for users.

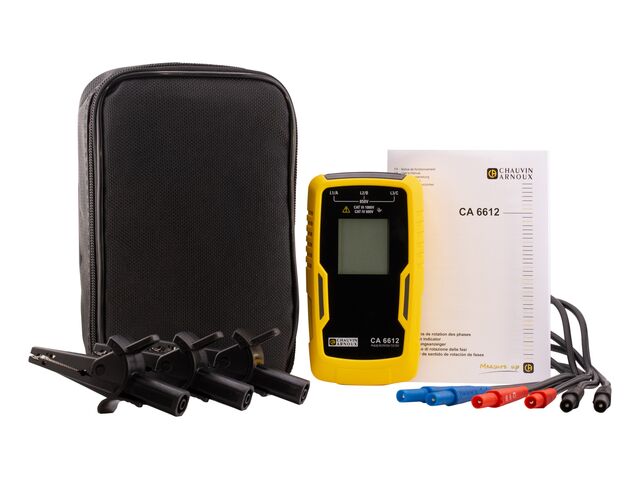

Supplied in a carrying case containing 3 test leads, 3 alligator clips, and 1 operating manual in 5 languages.

Technical features

40 to 850 VAC between phases 15 to 400 Hz Self-powered by the measurement inputs IEC 61010-2-030 1000 V CAT III / 600 V CAT IV IP40 135 x 75 x 31 mm 140 g

Download the complete technical features
