Piezo controller and amplifier : digital system d-Drive : interface/display

Interface- and display module EDS 1 and EDS 2 :

The data interface modules EDS 1 and EDS 2 enables communication between the user and the piezo system.

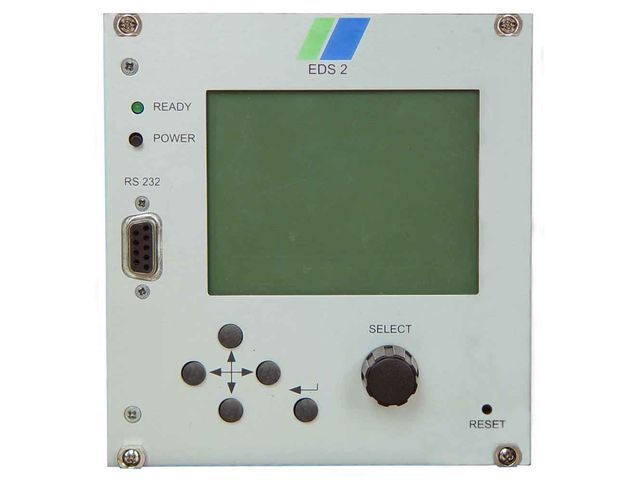

The EDS 2 (part.no. E-751-000) comes with VGA display.
The cursor buttons navigates through the menus. By pressing the Enter button one can jump into the pertaining menu. In the input mask the value can be changed by applying the button. By pressing the turning knob the value is accepted.

If you leave the menu without acknowledging it the old value is restored. The display shows the status messages as well as recent values of the system. For full control and comfortable adjustment we recommend using a PC or laptop running d-Drive control program.

The modules EDS are always a part of the 19-casing with wide power range supply module from 110V up to 230V. The width of the casing is 84TE.
As opposed to the EDS2 the EDS1 offers an interface only. It has no display or controls. All adjustments have to be done by using a PC or laptop running the terminal program.
