Planetary Mixer ARV 310 Thinky

Stirrers

Vote

“ - Simultaneous mixing, dispersion, and submicron-level air bubble elimination - Deaeration of high-viscosity materials difficult to be processed by a centrifugal separator - Reduced processing time and improved deareation performance compared to the atmospheric type mixer - Centrifugal force of revolution prevents overflow of material during operation ”

Ask for a quote

Presentation

Standard vacuum mixer enabling uniform mixing and elimination of submicron-level air bubbles.

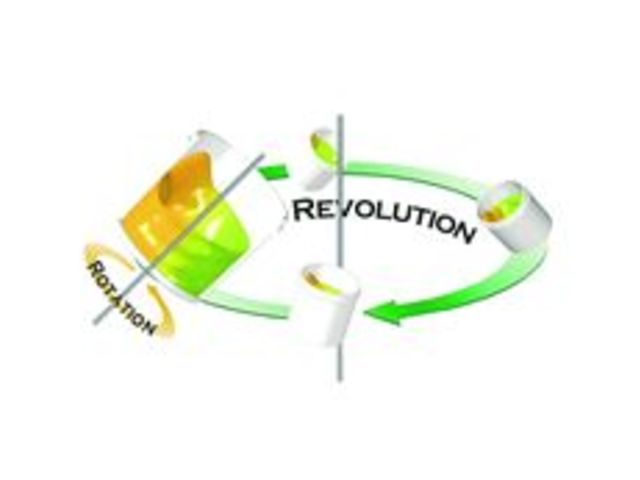

Combining vacuum pressure reduction function with rotation and revolutionmixing enables efficient elimination of submicron-level air bubbles. With rotation and revolution movement under vacuum pressure reduction, deareation of high-viscosity materials; which was considered difficult, can now be performed with excellent quality. The processing time can be further reduced compared to the atmospheric mixer. In terms of operation; the centrifugal force of revolution during the mixing process suppresses the material within the container, eliminating the need to keep an eye on the material so that it does not overflow, as is needed with static vacuum chambers.

Technical features

Max. processing volume 300 ml Dimensions H450 x L555x P645 Max. weight ( net ) 250 g Max. weight ( brut ) 310 g Deaeration type Vacuum Mixing function 420 G RPM Adjustable

Download the complete technical features
